R65 Switch Point Type 1/9 Project 267A.00.000-03 for Coal Mines

Available for Import

R65 Switch Point Type 1/9 for Efficient Railway Operations in Coal Mines

Wide Gauge Track Switches

Manufacturer: NSZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

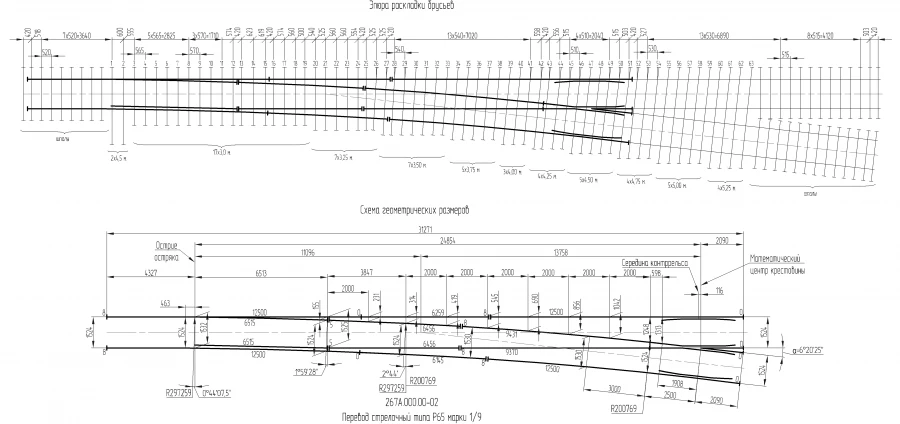

Switch-over of arrow type P65 type 1/9 of project 267A.00.000-02

Description

Designed for operation on access roads of coal mines, mines. Design features: translations: crutch and terminal fastening; on SD pads; switches: rotary shackle with liner and pad root fastening; adjustable link; pads with pads on riveted connection; crosses: prefabricated with rail whiskers and cast core made of high-manganese steel with liner-overlap end of the rear outreach on the bridge, or one-piece cast of high-manganese steel with liner-overlap end of the front and rear outreach on the pads and bridge; counter-rail made of SP850 angle

Specifications

Cross type by angle

Spicy

View

Single

Type of single transfer

Ordinary

Arrow design

With rotating sharps

Cross brand

1/9

Rail type

?65

View in the direction of a side or crossing track

Left

Cross type by construction

Team

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

wooden

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
