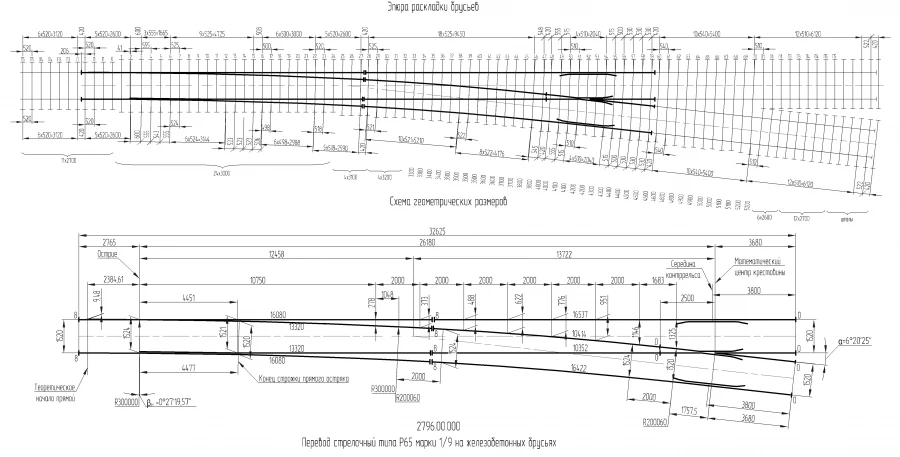

R65 Type Switch for Concrete Beams - Efficiently Transfer Rolling Stock Between Tracks

Designed for the transfer of rolling stock from one track to another and used on the main tracks of railway lines with mixed freight and passenger train traffic. Design features: transfer: separate fastening; elastic bar terminals Skl; pads with flanges; with subsequent welding of rail joints in the track by aluminium-thermite method; on embedded bolts; arrows: flexible sharps with welded rail ends, elastic U-shaped spring terminals; welded pads with cushions; crosses: prefabricated cross with rail whiskers and shortened cast core of high-manganese steel with welded rail ends to its rear end; counter-rail made of SP850 corner
