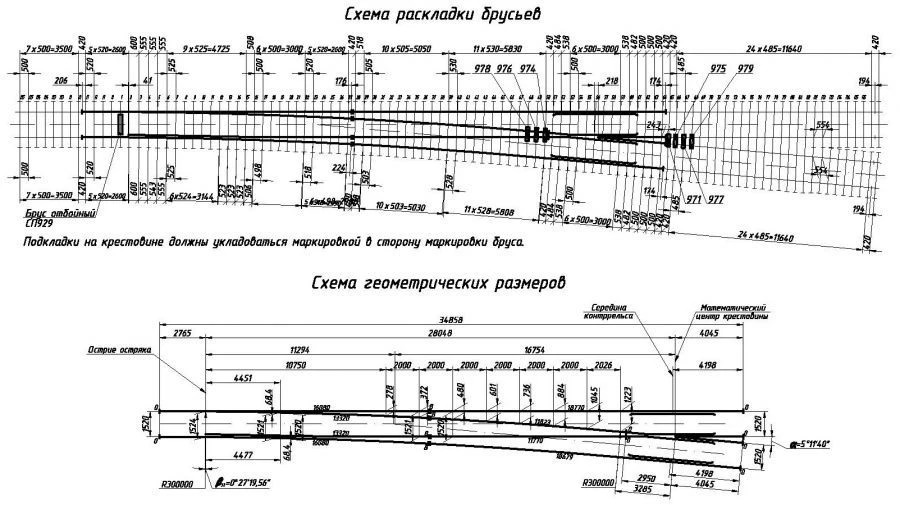

R65 Type Switch Mark 1/11 for Efficient Railway Track Installation

The R65 type track crossing of mark 1/11 on reinforced concrete bars is designed for laying on railway tracks of 1 and 2 classes. The switch has flexible shackles with welded rails. The crossbar is of prefabricated welded construction - rail ends are welded to the core made of high-manganese steel.

The counter rail is not connected to the track rail. All pads have high flanges. The shanks are HFI hardened.

Frame rails, cross rails, rails of transfer curve made of OT350 or DT350 rails. The R65 type R65 grade 1/11 switches of project 2750.00.000-02/03 are manufactured in the following versions: 2750.00.000-02 - right-handed; 2750.00.000-03 - left.
