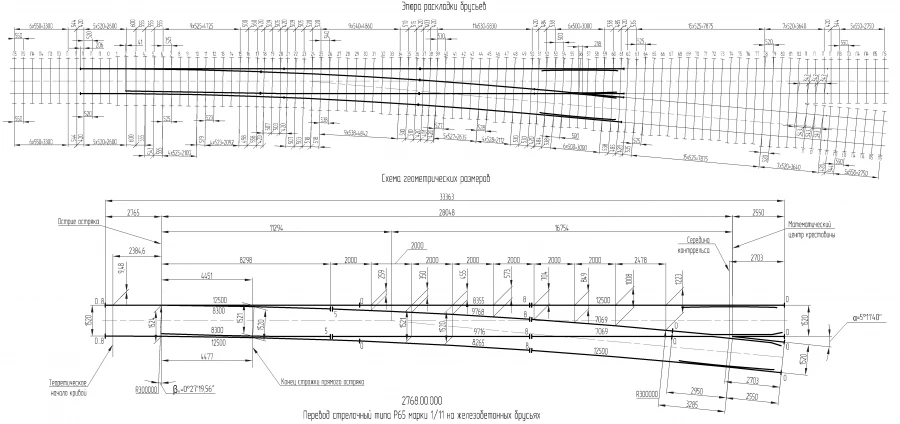

R65 Type Switch Transfer for Efficient Rail Track Switching on Reinforced Concrete Beams

Designed for the transfer of rolling stock from one track to another. It is used on the main tracks of railway lines with mixed freight and passenger train traffic and speeds of passenger trains on the straight track up to 140 km/hour. Design features: transfers: separate fastening, elastic bar terminals Skl or PC type terminals, pads with flanges; on embedded bolts; switches: rotary shackle with liner-overlay root fastening; welded pads with cushions; elastic P-shaped spring terminals; crossbars: prefabricated with rail usoviki and cast core of high-maragantsovyh steel with liner-overlay end of the rear extension; counter-rail made of angle SP850.
