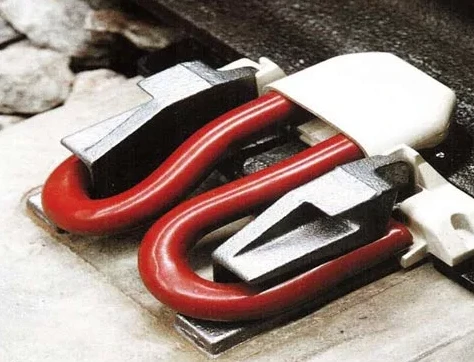

Anchor rail fastening terminal PFC-350

Anchor rail fastening terminal PFK-350 is designed for attaching rails to reinforced concrete sub-rail base. The terminal meets the requirements of technical specifications TU 3185-001-59753858-2009 and drawing PFK-350.001.13047. The terminals are made of round hot-rolled, silicon-manganese steel of 16 mm diameter of 40C2 and 42C2-PV grades with rolling accuracy not lower than B1 according to GOST 2590.The terminals are subjected to acceptance, qualification, periodic, type and certification tests.
