Rail Drilling Machine STRC-B with Gasoline Engine for Efficient Operations

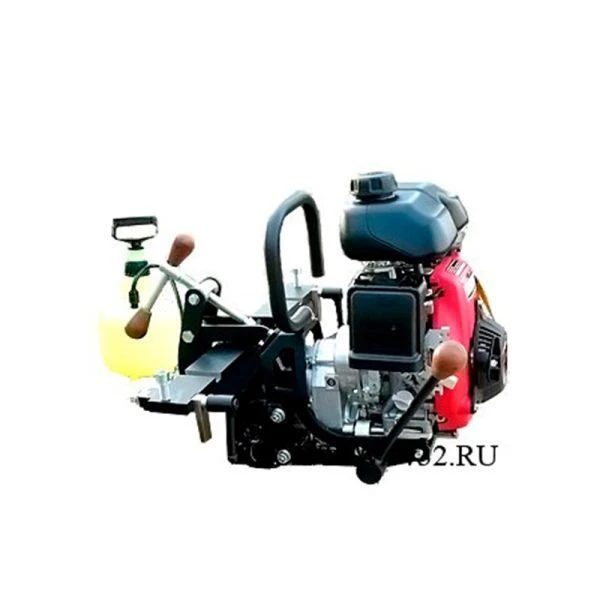

The STRS-B petrol-powered rail-drilling machine (hereinafter referred to as "the machine") is designed for drilling holes for butt bolts and rail connectors in non-hardened and volume-hardened rails of R50, R65, R75 types during routine maintenance and repairs of railway track. The economical and compact motor plus the simple design of the gripper makes the STRS-B one of the lightest rail boring machines in the world.

Drive type Petrol engine Engine power, kW/hp 1,8/2,5 Working volume, cm3 49 Fuel tank volume, litre 0,77 Maximum speed, rpm 4500 Max. bore diameter, mm 36 Capacity of holes per 10 min, pcs, not less than 10 Overall dimensions, mm 460?370?420 Weight, kg 18
