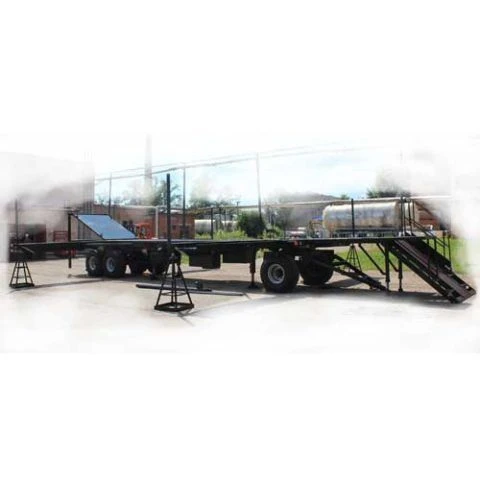

Receiving bridges and racks

Receiving bridges and racks for tubing, tubing and casing are designed for receiving, issuing, storing and storing tubing, special drilling pipes (SDP) and casing pipes during current and overhaul of wells. Technical characteristics Transport base of the receiving bridge..... chassis model 84703B Permissible uniformly distributed load on racks, tf ........................................................70 Area of unit support under the receiving bridge, m2.....0,32 Number of supports under the receiving bridge, pcs....................12 Dimensions of the bridge in unfolded (working) position, mm, not more: <ul> <li>- length...............................................................14900</li> <li>width..............................................................9800</li> <li>height...............................................................3400</li> </ul>Dimensions of the bridge in transport position, mm, not more <ul> <li>- length...............................................................13250</li> <li>width..............................................................2800</li> <li>height...............................................................3400</li> </ul>Maximum travelling speed, km/h, not more........30 Total weight, kg, not more.........................................9000.
