Regulating Ball Valve 682/692 Welded, Model 68220080

Available for Import

Regulating Ball Valve 682/692 for Efficient Flow Control in Systems

Ball Valves

Manufacturer: TEMPER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Control ball valve 682/692 welded , 68220100 Control ball valve 682/692 welded , 68220020 Control ball valve 682/692 welded , 68220050 Control ball valve 682/692 welded , 68220125

Description

Regulating ball valves TEMPER are designed to regulate (balance) the flow of working medium in heating, cooling and ventilation systems. The ball has a special cross-section and the valve is equipped with a scale with values. Regulation is performed by turning the handle with a pointer. The selected handle position is secured with a bolt and butterfly nut.

Two designs:

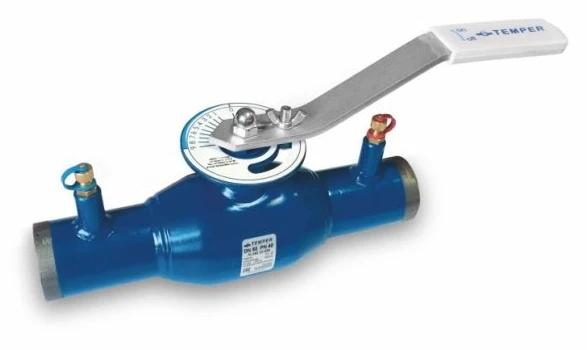

1)With measuring nipples (see figure below).Flow and differential pressure in the system can be measured by means of a flow meter.

2)Without measuring nipples. The flow rate is adjusted only by means of a handle with a pointer.

Specifications

Airtightness class

Class "A" GOST R54808-2011

Diameter

80 mm

Nominal pressure

25 MPa

Construction length

370 mm

Connection type

Welded

Aisle

Standard

Flange for mounting the actuator

without flange

Execution

regulating

Enclosure materials

Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to

-40 °C

Maximum temperature, up to

200 °C

Service life, at least

25 year

Warranty period

3 year

Warranty period, cycles

10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
