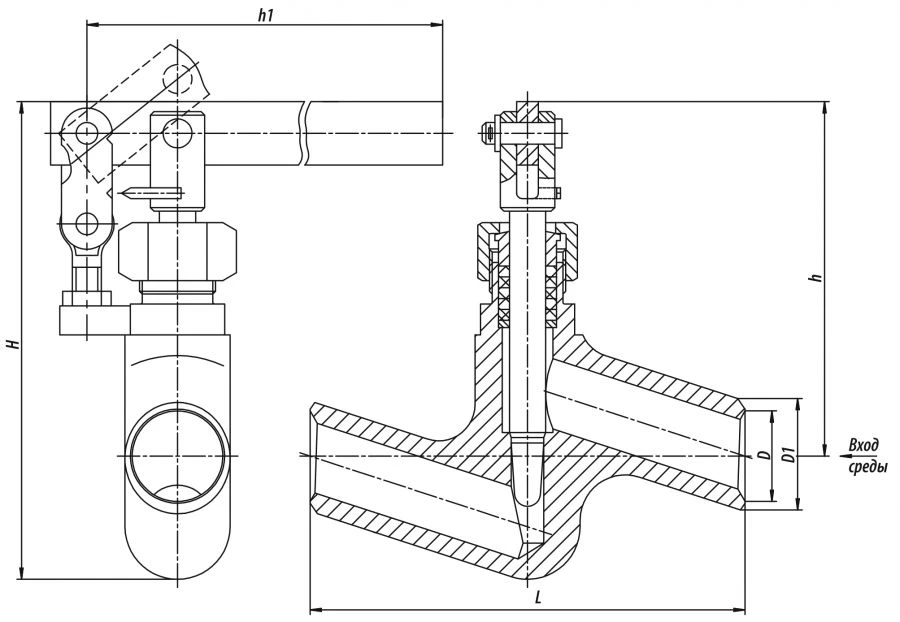

Regulating Valve 9C-3-3-4 for Precise Liquid Flow Control

Control valves are used as fluid flow regulators. Smooth regulation within the design flow rate is achieved by the shape of the valve needle. Place of installation: as a rule, they are installed on the cooling water injection pipelines in the cooling water treatment plant, ROU, BROU and on the process pipelines.

Installation requirements: valves are designed for outdoor installation and in closed rooms with ambient temperature up to +70 °C. Valves equipped with built-in actuators should be installed only on horizontal pipeline sections with actuator in upward position. Connection to pipeline: under welding.

Climatic design: ?, ???, ??,? according to GOST 15150-69. Placement category: 1, 2, 3 according to GOST 15150-69.
