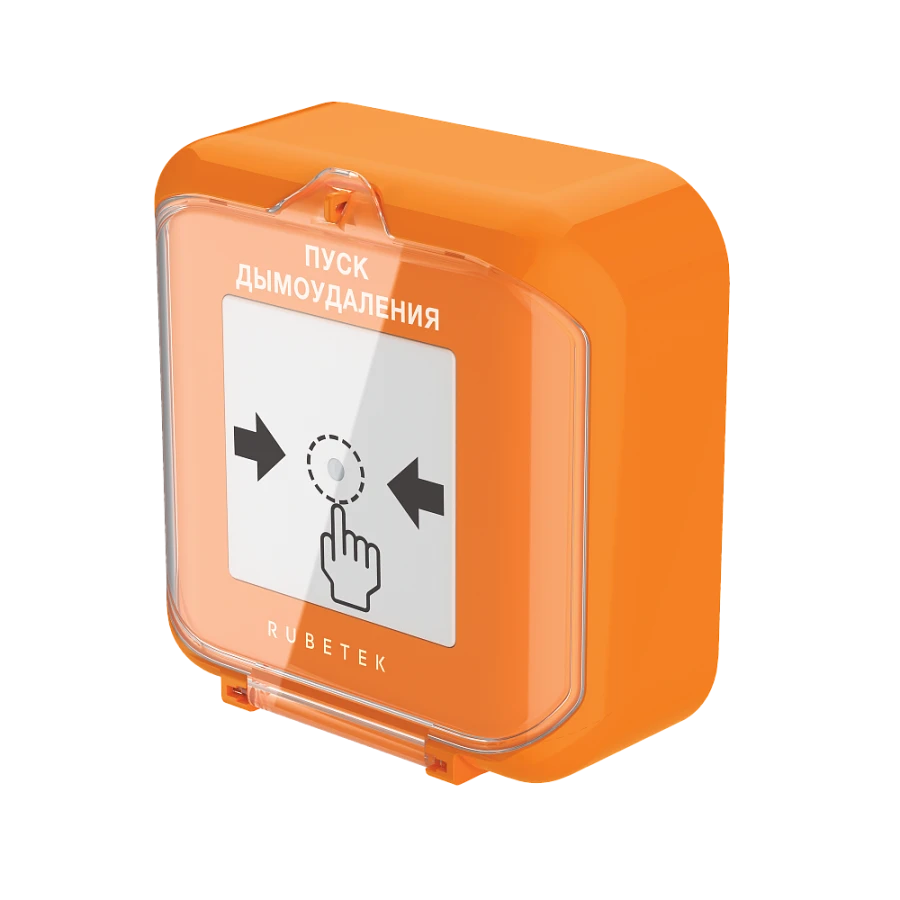

Remote Start Device for Fire Protection Systems - UDP-513-02D "RUBETEK
Manufacturer:
RUBETEK RUS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
UDPs are designed for manual activation of fire protection systems (fire extinguishing, smoke removal, notification, internal fire water supply, etc.) by forming a signal for radio-channel fire control device (FCD). According to the number of actions required for activation, UDPs belong to class B - activation According to the physical realisation of communication with the FPU products belong to the radio channel ones.
Specifications
Breakaway sensor
Got it
Communication interface
RF 868 MHz
Number of address slots occupied
1 pcs
Main supply voltage
3 V
Standby power supply voltage
3 V
Operating time from the main battery, not less
3 year
Operation time from the backup battery, not less than
3
Operation at button pressing force, not less than
25
Maximum communication range (in open terrain)
900 m
Signal encryption
XTEA 128bit
Radiation power, not more
0.025 W
Number of channels within the frequency range
5 pcs
Operating temperature range
-10...55 °C
Relative humidity at + 40 deg. ?
0...93 %
Degree of enclosure protection
IP20
Dimensions (L x W x H), mm
85x85x40
Weight, not more
116 year
Average service life
10 year
Average MTBF
60000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
