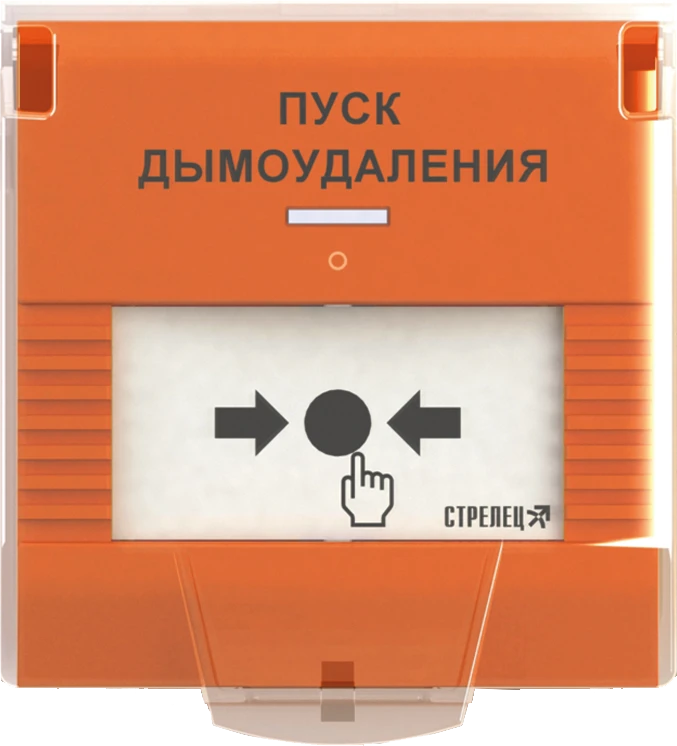

Remote Start Device UDP-PRO DU-L for Smoke Extraction Automation

Remote start device addressable radio channel UDP-PRO version DU-L is designed for manual start of smoke removal automatics by transmitting signals of activation of executive devices to the receiving and controlling device via radio channel. Radio channel is used for information exchange. The device has a drive element designed to transfer the device by mechanical action from the standby mode to the activation mode.

The activated state of the device is reset by means of a special reset key. The same key is used to separate the housing from the device base. The main power source of the device is a lithium battery with a nominal operating voltage of 3.0 V and a capacity of 1.2 A?h.

Typical operating time from the main battery is 8-10 years, from the backup battery - 6-12 months. The device maintains operability in the following conditions: - ambient temperature - from - 30+55 ° C; - relative humidity - up to 93% at 40 ° C.
