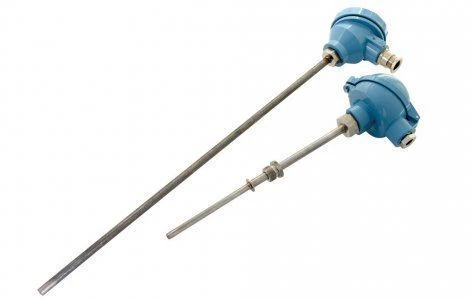

Available for ImportResistance Temperature Detector EnI-300 TSP for Accurate Temperature Measurement
Manufacturer:ITek BBMV LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Resistance thermocouples are used to measure the temperature of:
-liquid, gaseous, loose media, dispersed media and suspensions without particle adhesion, as well as aggressive media that do not destroy the protective body and the material of the protective fitting;
- surfaces of solid bodies and bearings.
In versions with a measuring transducer, the signal from the sensing element is converted into a unified DC output signal (0-5mA, 4-20mA) or into a digital output signal via HART protocol (4...20mA/HART)..
-liquid, gaseous, loose media, dispersed media and suspensions without particle adhesion, as well as aggressive media that do not destroy the protective body and the material of the protective fitting;
- surfaces of solid bodies and bearings.
In versions with a measuring transducer, the signal from the sensing element is converted into a unified DC output signal (0-5mA, 4-20mA) or into a digital output signal via HART protocol (4...20mA/HART)..
Specifications
Type of climatic version
UHL3.1 or U1.1 according to GOST 15150-69
Material of protective armature
12?18?10?; 10?17?13?2?; AISI 321; AISI 316; Brass ??-59-1; Brass ?63
Degree of protection
IP55; IP66
Type
50P; 100P; Pt100; Pt500; Pt1000; 2x50P; 2x100P; 2xPt100
Unit designation
ENI-300 TSP
Accuracy class
AA; A; C; S
Joining the process
Without connecting element; M8x1; M12x1,5; M16x1,5; M20x1,5; M24x1,5; M27x2; M33x2; G1; G1/2; G3/4; 1/2NPT,(K1/2); 3/4NPT,(K3/4); special version
Output signal
50P; 100P; Pt100; Pt500; Pt1000; 2x50P; 2x100P; 2xPt100; TS with analogue IC with 4-20 or 0-5 mA DC output signal; TS with microprocessor IC with 4-20 mA DC output signal; TS with IC with 4-20 mA/HART output signal
Type of explosion protection
General industrial; 1Ex d IIC T6 Gb X; 1Ex d IIC T5 Gb X; 1Ex d IIC T4 Gb X; 0 Ex ia IIC T6 Gb X; 0 Ex ia IIC T5 Gb X; 0 Ex ia IIC T4 Gb X
Measuring limit, max
600 °C
Measuring limit, min
-196 °C
Length of immersion part
25...4000 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
