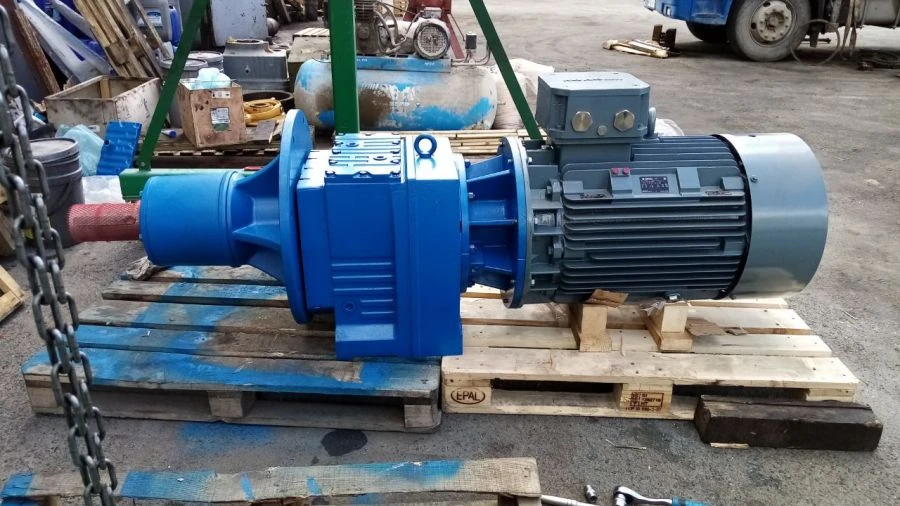

REVTS 303216 Cylindrical Gear Motor with Extended Shaft

Available for Import

REVTS.303216.001 Cylindrical motor-reducer

High-Power Multi-Phase AC Motors

Manufacturer: KAE-GROUP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The helical gearmotor is a special type of helical gearmotor with an extended output shaft bearing housing. It is specially designed for use in mixing applications and can withstand high external radial and axial loads and bending moments. The main construction materials of the gearmotor are: ??20 for housing parts and alloy steel 20???? for gears and steel 45 for shafts.

Specifications

Output torque (nominal - maximum), not less than

4500...18000

Mounting design

Vertical, output shaft downwards

Temperature rise limit CLB

80 °C

Level and type of explosion protection of electric motor

Ex d IIC

Protection class of the electric motor

IP55

Power supply parameters

400 V

Type of gear joint

Cylindrical

Number of gearbox steps

2 pcs

Motor shaft speed

1500

Motor power

Flat grinder, Specialised grinder kW

Output shaft speed

186

Height

810.4 mm

Width

660 mm

Length

2231 mm

Weight, packed, not more

2200 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
