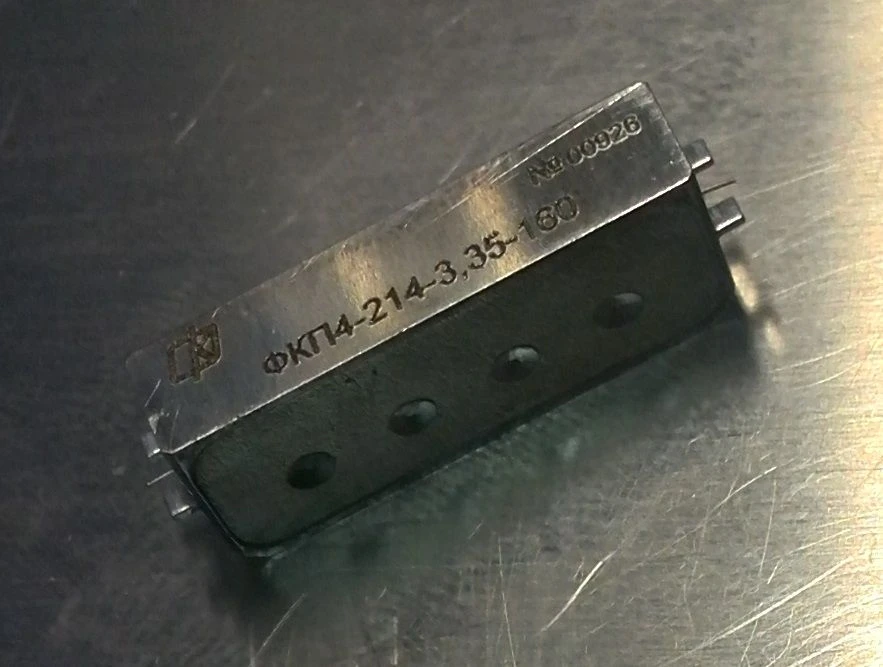

RF Bandpass Filter FKP4-214-3.35-160 for Enhanced Signal Quality
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The band-pass filter of the 4th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the product. The product is designed for operation in the UHF range and provides a bandwidth of 160 MHz relative to the centre frequency of 3350 MHz.
Specifications
Maximum input and output VSWR in the frequency band 3280 to 3415 MHz
1.4
Guaranteed attenuation (upper band 3700 to 4000 MHz)
SBVVBG
Guaranteed attenuation (lower band 10 to 3050 MHz)
45
Maximum insertion attenuation at center frequency
1.2
30 dB level bandwidth
380...410
Bandwidth at 1 dB level
155...169
Center frequency
3349
