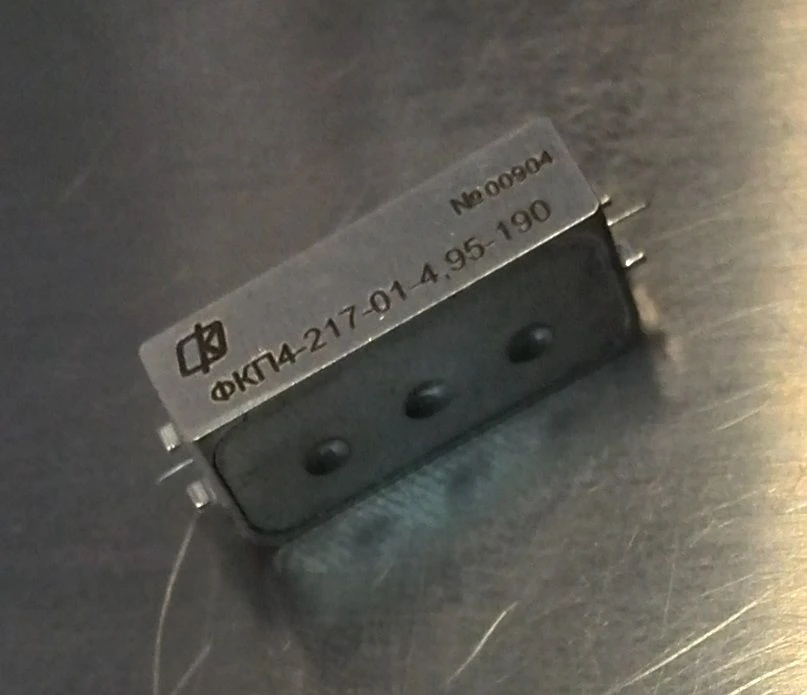

RF Bandpass Filter FKP4-217-01 for Reliable Signal Transmission

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Band-pass filter of the 3rd order is made on the basis of a ceramic monoblock inside the housing - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the filter. The product is designed for operation in the UHF range (C-band) and provides a bandwidth of 190 MHz relative to the centre frequency of 4950 MHz.

Specifications

Maximum input and output VSWR in the frequency band 4885 to 5005 MHz

1.4

Guaranteed attenuation (upper band 5510 to 6000 MHz)

Guaranteed attenuation (lower band 4500 to 4650 MHz)

Maximum insertion attenuation at center frequency

0.9

Bandwidth at 20 dB level

475...510

Bandwidth at 1 dB level

180...200

Center frequency

4949
