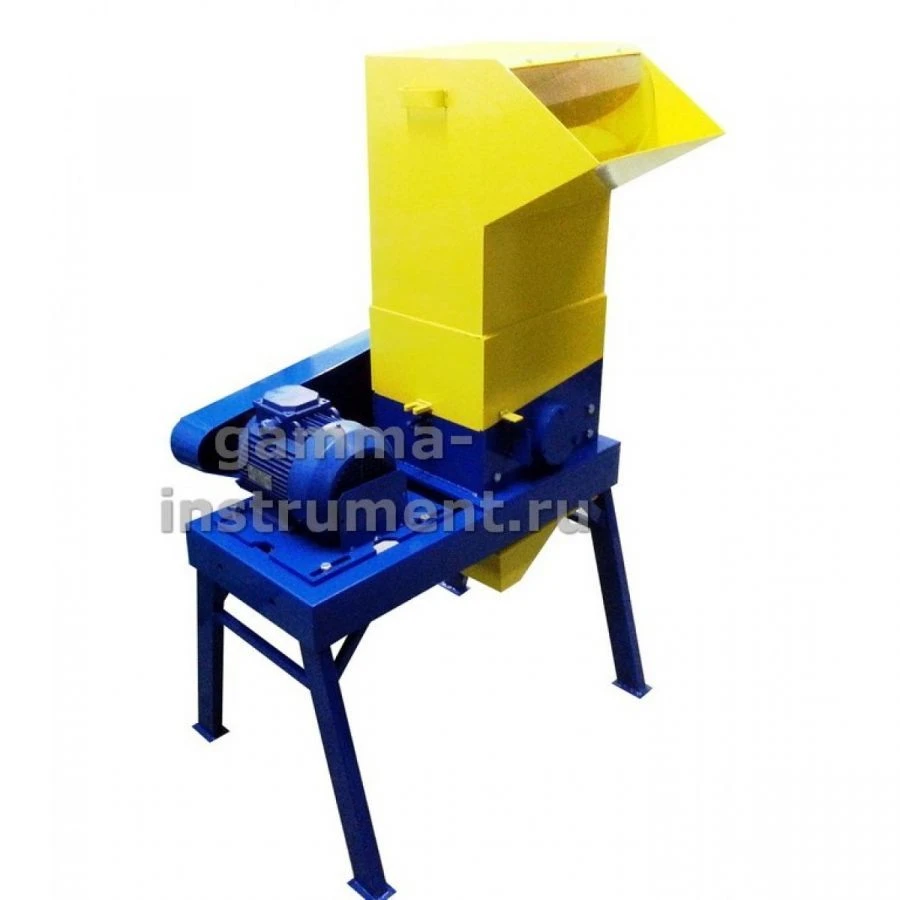

Rotary Mechanical Shredder MIG 300–380–12–UHL4 for Effective Material Size Reduction
Manufacturer:GAMMA-INSTRUMENT LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Rotor mechanical shredders (crushers), model series MI, MIG - crushing equipment for primary and subsequent size reduction of a wide range of materials (plastic products with a wall thickness not more than 4 mm, foam, foam rubber, foam rubber, syntepon, expanded polystyrene, polymer films, polypropylene bags and waste). The crushers are equipped with high-speed rotating knives, effectively crushing the material to flakes and shavings. They are intended for crushing of materials, production waste (for the purpose of reuse of raw materials - recycling), at small and medium-sized enterprises, as well as for use in various sectors of national economy and exports.
Specifications
Voltage
380 V
Weight, not more
280 kg
Service life, at least
5 year
Drive type
Belt
Rotor dimensions
200 mm
Receiving opening dimensions (L x W), mm
400x300
Working chamber diameter
300 mm
Number of knives, rotary/stationary, pcs.
6/4
Crusher capacity, kg/h
Up to 90
Size of maximum piece of material to be loaded, mm
For plastic products, the wall thickness must not exceed 4 mm
Output fraction size
6...40 mm
Nominal rotor speed
1500
Circumferential speed of rotating rotor blades
16
Adjustable width of exit slits
0.5...5 mm
Installed power nominal
5.5...11 kW
Overall dimensions (L x W x H), mm
500x1000x1500
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
