Safety Shut-off Bellows Valve ZZT26161-032-03 for Piping Systems

Available for Import

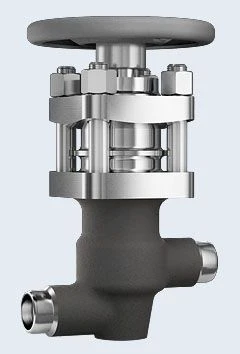

Safety Shut-off Bellows Valve ZZT26161-032-03 for Secure Piping Applications

Nuclear Power Valves

Manufacturer:Znamia Truda OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Bellows shut-off valve ZZZT26161-050 (all versions)Bellows shut-off valve ZZZT26161-100-08 (all versions)Bellows shut-off valve ZZZT26161-080-06 (all versions)Stop bellows shut-off valve ZZT26161-025 (all versions)Bellows shut-off valve ZZZT26161-050-08 (all versions)

Description

Applied for installation as shut-off devices on pipelines of nuclear power plants (NPP) in systems important for safety, including safety systems.

They are supplied domestically and for export, including to countries with tropical climates..

Specifications

Airtightness class

in accordance with GOST 9544

Seismic resistance category

i by np-031-01

Diameter

32 mm

Classification designation of the valve

2biiv; 2biiic; 3ciiic per np-068-05

Media flow direction

on or under the spool

Setting position

any; of valves with electric actuator - any in the upper hemisphere relative to the horizontal plane; recommended position - vertical

Valve control

manual (handwheel; gearbox); from electric actuator; remote (articulated coupling)

Housing material

08x18n10t; steel 20

Pipeline connection

Welded

Operating medium temperature

200
