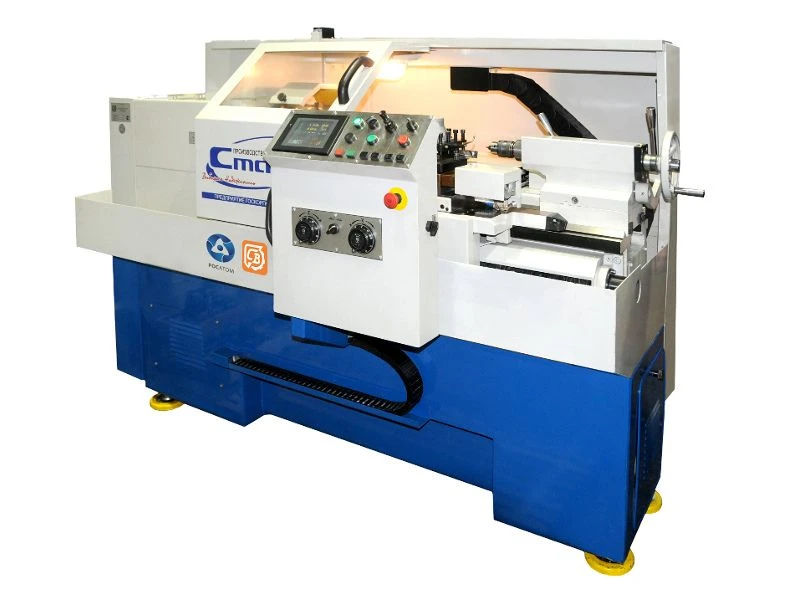

SAMAT 400 "Vector" Universal Lathe with Operational Control

Available for Import

SAMAT 400 "Vector" Universal Lathe for Precision Machining Applications

Manual Metal Lathes

Manufacturer: STANCOZAVOD LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Universal lathe SAMAT 400 "Vector" innovative development of SVSZ Intended purpose The line of universal lathes with mini program (operational) control is represented by models Samat 400 SC, MC with maximum diameter of machining above the bed 400 mm and RMC 750 and 1000 mm. The machines are equipped with an original control system based on a programme controller and drives for X and Z axes of the Japanese company OMRON.

Two versions are possible: accuracy class P (increased) and accuracy class B (high) according to GOST 8-82.

The machines are delivered with commissioning and operator training.

The machines are designed for a variety of turning operations in one-man, small batch and serial production. While retaining all the advantages of a universal machine, the machine allows automatic operation: the programme can be saved while the operator is machining the first part, or it can be entered using a wide range of micro-cycles. When equipped...

Specifications

Type of product according to PP RF 616

Turning machining centers (single and multi-spindle)

Tapered bore in spindle

Morse 6 mm

Speed of rapid strokes in automatic/manual mode, mm/min - longitudinal strokes

7000/6000 mm

Speed of fast strokes in automatic/manual mode, mm/min - transverse strokes

3500/3000 mm

Largest diameter of the product to be installed above the bed

400 mm

Largest diameter of the workpiece to be installed above the slide

200 mm

Length of the product to be installed

1500 mm

Spindle bore diameter

45 mm

Height of tool in toolholder

25 mm

Spindle speed limits, min-1

25...2500

Traversing feed rate limits, mm/rev

0.01...10 mm

Traversing feed rate limits, mm/rev

0.005...5 mm

Discreteness of displacements in manual mode - longitudinal

0.01 mm

Discreteness of movements in manual mode - transverse movements

0.005 mm

Thread pitch limits - metric, pitch in mm

0.25...56 mm

Power of electric motor of main motion, kW

5.5 kW

Overall dimensions of the machine, not more, mm: - length

2600 mm

Overall dimensions of the machine, not more than, mm: mm - width, mm

1220 mm

Overall dimensions of the machine, not more, mm - height, mm

1595 mm

Machine weight

1950 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
