Satellite Information Reception Software-Hardware Complex "Rastoropsha-24" for Efficient Data Processing

Antenna Equipment & Parts

Manufacturer: LORETT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

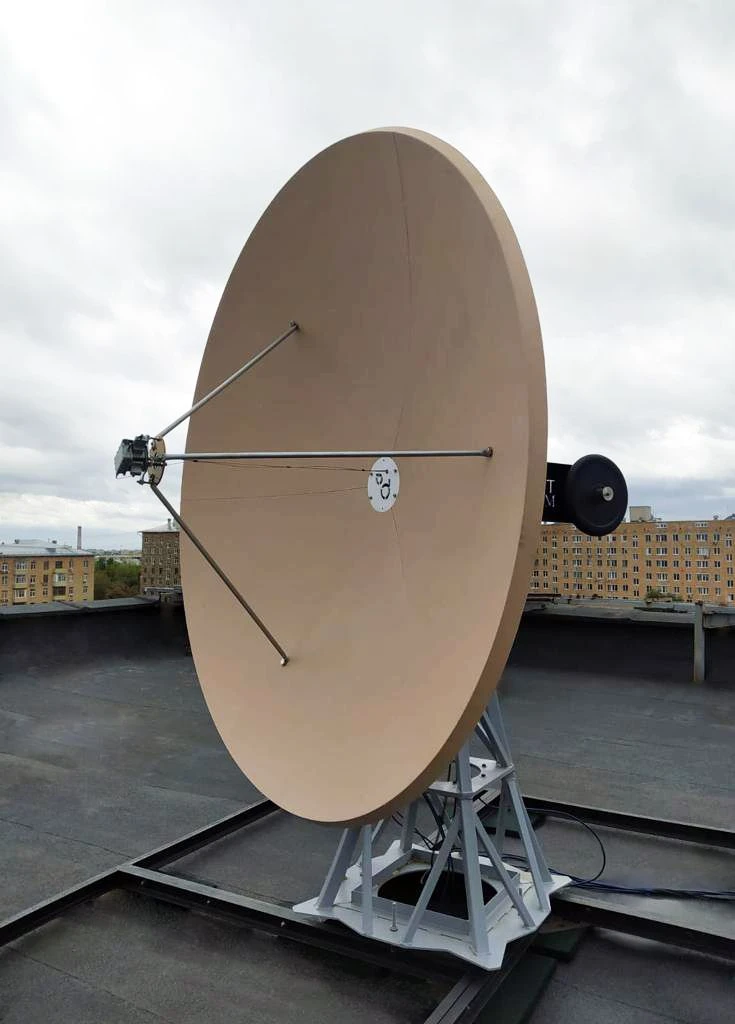

The hardware-software complex "Thistle-24" is designed to receive and process digital information transmitted from artificial Earth satellites in low-Earth orbits via X-band radio channels (7.8-8.4 GHz) in the range of signal rates 0.1-100 Mbaud (option 0.2-350 Mbaud). The station provides stable reception of signals in the whole upper hemisphere (from 10 degrees elevation) from a wide range of satellites with optical and radar equipment providing images with spatial resolution up to 1 m and better. The station control software performs a fully automated station cycle without operator intervention.

Specifications

Equipment

Antenna; rotating support unit (RSU); signal processing unit; cable set; personal computer (PC); software (SW); user manual.

Weight

200 kg

Polarization

Right circular

Power supply voltage

220 V

Power consumption

200 W

Reflector diameter

2.4 m

Frequency ranges (X-band input signal)

7800...8400

Type of slewing ring

Two-axle azimuthal-angle vehicle

Maximum rotation speed on the "azimuth" axis

60 deg/sec

Maximum rotation speed on the "angle of position" axis

5 deg./s

Accompaniment mode

Software (calculated trajectory), with correction by signal level

Accuracy of program support

Not more than 10 angular minutes

Maximum distance of the slewing ring from indoor units

SBVVBG m

Input frequency range of the signal processing unit

900...1500

Input signal speed range of the signal processing unit

0.005-100 Mbaud

Input signal modulation type of signal processing unit

BPSK, BPSK-135, QPSK, OQPSK, 8PSK, 16APSK, 16QAM, 32APSK

Types of decoding

Viterbi 1/2 (BPSK), 1/2, 3/4, 7/8 (QPSK, OQPSK); Reed-Solomon according to CCSDS 101.0-B-3

Wind speed limit

Operating temperature range for outdoor units

-40...50 °C

Wind speed (working)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
