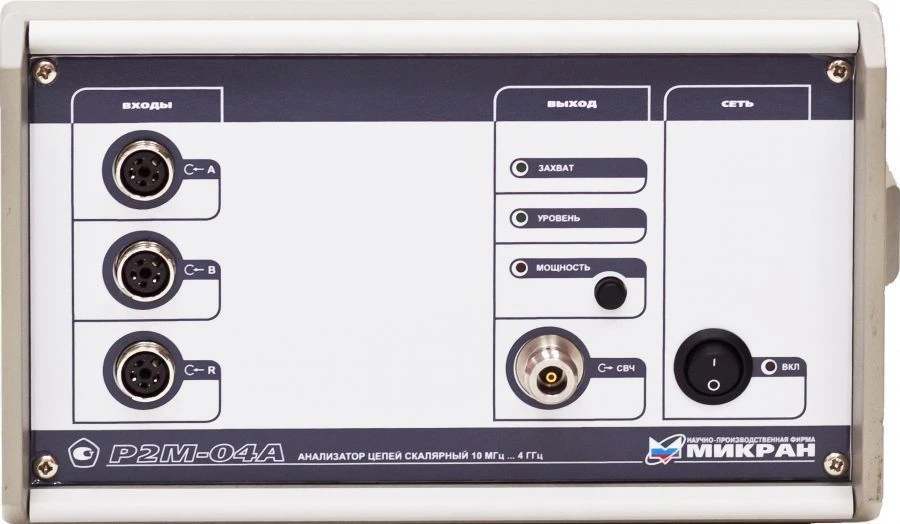

Scalar Chain Analyzer P2M-04A/1 for Accurate Coaxial Measurements

Analyser of circuits scalar R2M-04A/1 is intended for measurements in a coaxial path with diameters of cross-sections 7,0/3,04 mm of parameters of the reflection coefficient modulus or standing wave coefficient on voltage, measurements of the transmission coefficient modulus, simultaneous observation of measured values of the transmission and reflection coefficient modulus. The scalar circuit analyser R2M-04A/1 can be used as a frequency synthesizer or as a part of automated measuring systems. Field of application - production and control of high-frequency and ultra-high-frequency equipment and devices, research, adjustment and testing of ultra-high-frequency units used in radio electronics, communications, instrumentation, measurement technology. The scalar circuit analyser R2M-04A/1 corresponds to 1 class of accuracy according to GOST 16423 by metrological characteristics.
