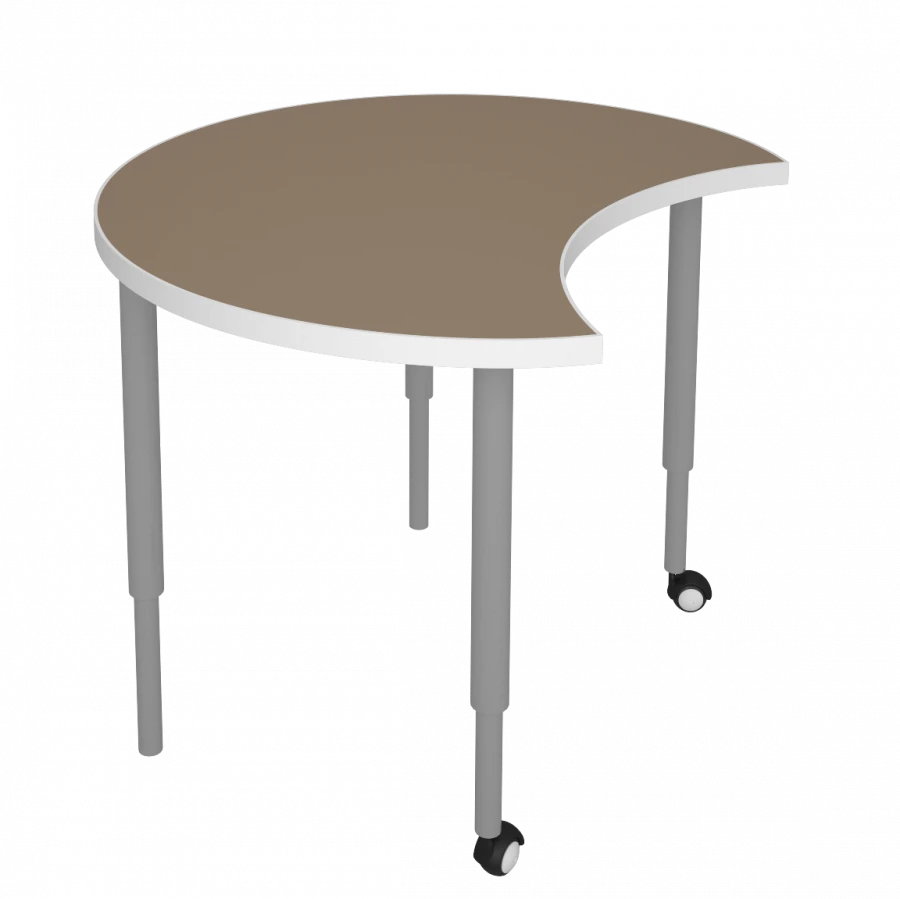

Sectional Table "ORIO" Type 1, Perfect for Modular Spaces

The frame has an all-welded construction made of a metal pipe with a diameter of 40 mm, thickness 1.2 mm and strapping made of a metal profile pipe with a cross-section of 25x25 mm, thickness 1.5 mm. The metal leg consists of 2 pipes of 40mm diameter, 1.2mm thick and 32mm thick, 1.5mm telescopic connection. The 40mm diameter pipe is equipped with a plastic transition tube for rigidity when fixing the pipe in the pipe.

It has a through hole for fixing the pipe with an M4 inter-section tie. The 32mm diameter tube has 4 through holes to allow the leg to be adjusted to different height positions. Two legs are fitted with plastic plugs to prevent damage to the floor covering.

And two legs have washers welded on the bottom with M8 threaded rivet to fix the 50mm diameter metal soft-stroke wheels with locking mechanism. The entire table frame is powder coated. The cover is 16 mm thick LDFP.

Fixing of the cover to the metal frame of the table is carried out with self-tapping screws.
