Self-Priming Pump Unit TANKEY-ASCL 20/24 18.5kW for Transferring Clean Liquids

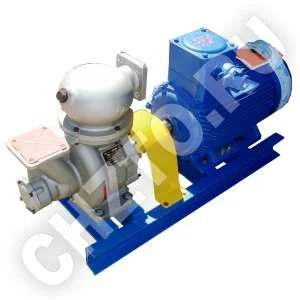

Self-suction pump unit ASCL-20-24 on the basis of pump SCL-20-24 and explosion-proof electric motor with capacity of 18,5 kW. It is designed for pumping clean liquids without mechanical impurities: water, petrol, paraffin, alcohol, product TM-285 and other neutral liquids with viscosity not more than 2*10-5 m2/s, temperature from -40 C to +50 C and density not more than 1000 kg/m3.Pump SCL-20-24 centrifugal-vortex, two-stage, horizontal. Shaft sealing is mechanical.

The pump is made of left and right rotation (from the side of the input end of the pump shaft). Flow parts are made of aluminium alloy and bronze. It is delivered assembled and does not require disassembly and reassembly during installation and decommissioning.

It can be operated in temperate or tropical climates and in countries with industrial current frequency of 60 Hz. By special order ASCL-20-24 can be equipped with diesel engine.
