Self-Propelled Sprayer-Distributor TUMAN-3 with Interchangeable Equipment

Available for Import

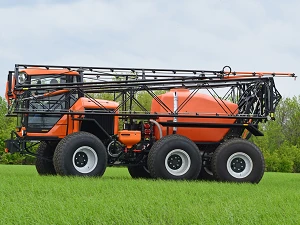

Self-Propelled Sprayer-Distributor TUMAN-3 for Effective Crop Spraying

Agricultural Sprayers

Manufacturer: PEGAS-AGRO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Stang sprayer (7 sections) TUMAN-3, spreader TUMAN-3, low pressure tyres, narrow wheels, navigation system, electromechanical thruster. Purpose: for efficient work on application of mineral fertilisers and plant protection agents (herbicide, insecticide, fungicide treatment) in the shortest agrotechnical terms due to high speed of processing. The undeniable advantage of the machines over their analogues is their multifunctionality, which is achieved by the modular design of the machine. Easy to maintain and reliable construction, light welded truss frame made of thin-walled steel profiles. All loaded frame elements are reinforced, improved weight distribution of the machine, soil pressure up to 0.4 kg/cm2 (on low-pressure tyres), work performance in the shortest agrotechnical terms, extended range of application (due to interchangeable equipment), one machine replaces 3-4 trailed sprayers and spreaders, does not require a free tractor, high productivity (spreads fertilisers up to 50 ha/h, at chemical plant protection up to 80 ha/h), satellite navigation system (allows to work day and night), performs agrotechnical works in difficult weather conditions, high quality of treatment, fast refuelling with chemical preparations, low fuel consumption, low cost allows to pay off the machine in 2 seasons.

Specifications

Type of product according to PP RF 616

Mechanical devices for spreading or atomizing liquids or powders, used in agriculture or horticulture

Wheel arrangement

6?4

Engine

Kubota V3800-DI-TE

Rated power

71 kW

Transport speed

Replacement process equipment (1)

Boom sprayer TUMAN-3

Machine operating weight, not more (1)

3800 kg

Tank capacity (1)

2500±5% l

Working width (depending on particle size distribution of the fertiliser and ambient conditions)(1)

28 m

Application rate (1)

15...450

Wheel types (1)

19-21 LT Low pressure tires W8-42 Narrow wheels

Overall dimensions in transport position (LxWxH, mm) on 19-21 LT low pressure tires (1)

7100x2900x3000

Ground clearance on 19-21 LT low-pressure tires (1)

370 mm

Track on 19-21 LT low-pressure tires (1)

2230 mm

Operating speed on 19-21 LT low pressure tires (1)

10...35

Overall dimensions in transport position (DxWxH, mm) on W8-42 narrow wheels (1)

7100x2450x3200

Ground clearance on W8-42 narrow wheels (1)

500 mm

Track on W8-42 narrow wheels (1)

2000 mm

Operating speed on W8-42 narrow wheels (1)

10...20

Replacement process equipment (2)

TUMAN-3 spreader

Machine operating weight, not more (2)

3800 kg

Hopper capacity (2)

2500±5% kg

Working width (depending on particle size distribution of fertiliser and ambient conditions) (2)

10...28 m

Application rate (2)

30...390

Wheel types (2)

19-21 LT Low pressure tires W8-42 Narrow wheels

Overall dimensions in transport position (DxWxH, mm) per 19-21 LT low pressure tires (2)

7100x2900x3000

Ground clearance on 19-21 LT low-pressure tires (2)

370 mm

Track on 19-21 LT low-pressure tires (2)

2230 mm

Operating speed on 19-21 LT 19-21 LT low pressure tires (2)

10...35

Overall dimensions in transport position (DxWxH, mm) on W8-42 narrow wheels (2)

7100x2450x3200

Ground clearance on W8-42 narrow wheels (2)

500 mm

Track on W8-42 narrow wheels (2)

2000 mm

Operating speed on W8-42 narrow wheels (2)

10...20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
