Semi-Automatic Blow Molding Machine PВ 700 (25 atm) (U)

Available for Import

Semi-Automatic Blow Molding Machine PВ 700 for Producing PET Containers

Industrial Food Processing Equipment

Manufacturer: TECHNOINDUSTRY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Semiautomatic blow moulding machine of series (type) PV model PV-200 (U) Semi-automatic blow moulding machine of series (type) PV model PV-19 Semi-automatic blow moulding machine of series (type) PV model PV-60 Semiautomatic blowing machine of series (type) PV model PV-700 (U) Semi-automatic blow moulding machine of series (type) PV model PV-700

Description

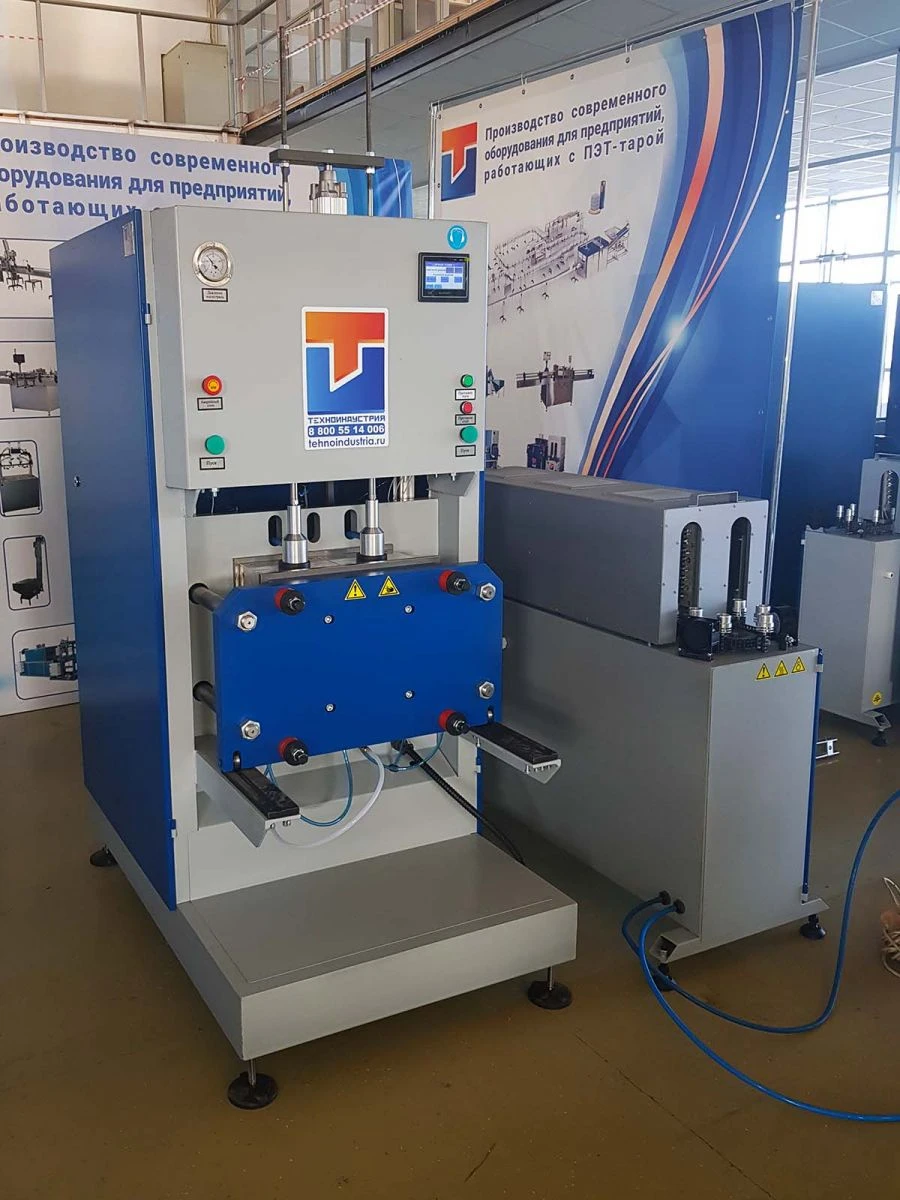

Semiautomatic blowing machine PV 700 is designed for the production of containers from polyethylene terephthalate (PET) preforms by preheating and blowing, with a capacity of up to 5 litres. The equipment set consists of a power plant and a furnace for preforms heating. The design includes the possibility of infrared lamps radiation power smooth regulation and smooth regulation of the chain conveyor speed. Smooth regulation of the furnace electric drive speed is carried out by means of a phase-frequency converter. Automatic maintenance and control of the parameters of the heating and blowing process is carried out by a programmable controller.

Specifications

Capacity (for 5.0 liter capacity) per hour, up to

700 pcs

Number of blowing nozzles

1 pcs

Power supply

220/380

Installed capacity, up to

24 kW

Cooling of seating chips for molds

air/water

Overall dimensions of the heating unit (DxWxH)

1200x320x1080 mm

Dimensions of the blower unit (LxWxH)

1000x580x1800 mm

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
