SGR10 Hoisting Winch for Elevators - Reliable for Lifting Applications

Elevator Component Parts

Manufacturer: VELLIFT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Lift winch SGR11

Description

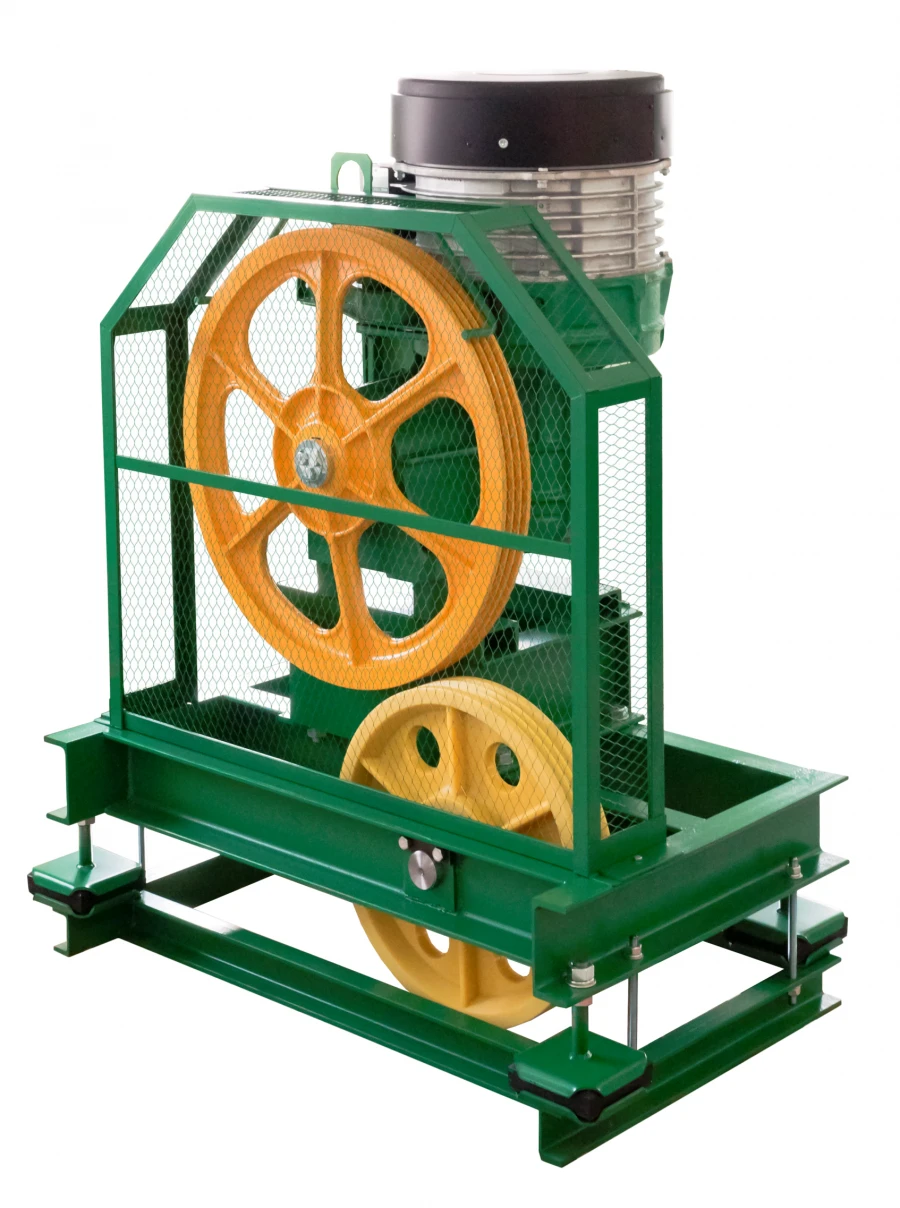

Lift winch SGR10 is designed to drive a lift with a capacity of 400 kg and speed of 0.71 m/s, installed in residential, public and industrial buildings. The winch has a built-in worm gearbox, can be made both in two-speed and single-speed version working in a set with electronic frequency converter. Type of climatic execution of the motor - UHL according to GOST 15150.

According to the category of placement the winch is made for category 4. Means of protection against corrosion of the winch parts provide safety during the service life and meet the requirements of GOST 9.301 and GOST 9.303..

Specifications

Payload

400 kg

Speed of elevator car movement

0.71

Gearbox ratio

Transmission center distance

138.6 mm

Suspension

1:1

Braking torque

Diameter of brake pulley

328 mm

Diameter of rope sheave

620 mm

Number and diameter of CPS ropes

3x10

Load on the axle of the CBC

18500

Motor type

asynchronous

Synchronous speed

1500

Rated current

10 A

Rated power

3.7 kW

EFFICIENCY

72 %

Number of switching operations per hour

150

Winch weight

360 kg

Rated torque on output shaft

1300

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
