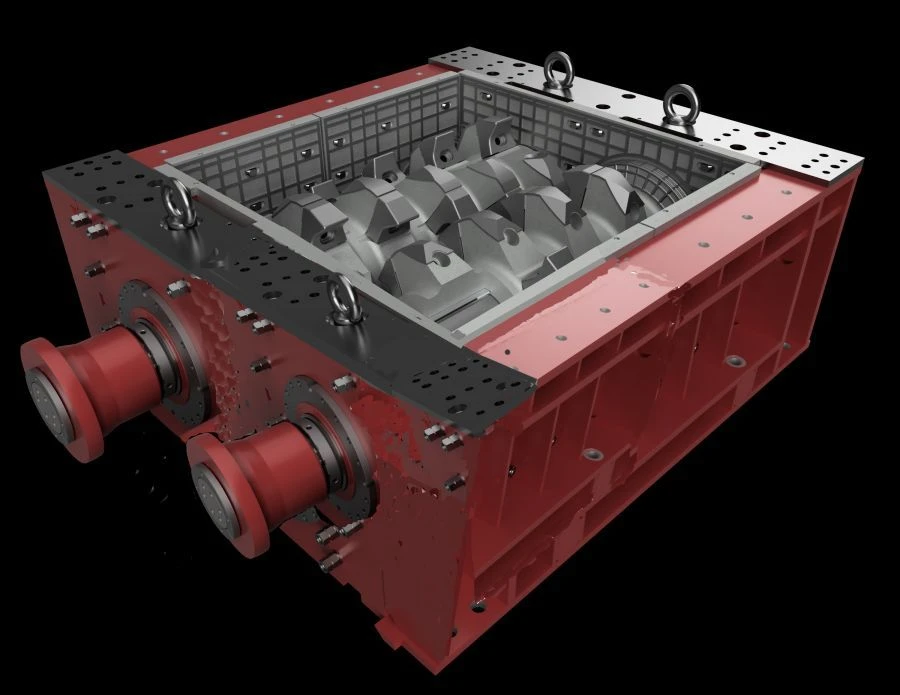

SHNEKO-GEAR Crusher DSZ-750/220 for Coal and Mineral Processing

Designed for crushing coal and ores, non-metallic minerals and other materials with compressive strength up to 150MPa, capacity up to 250 m3/hour. It is used at all stages of crushing. Continuous and intermittent feeding of material. Longer service life of discs and teeth. Advantage: small dimensions, maintenance is done from above, no need to organise control screening before and after crushing, work and start-up is carried out under the rubble, minimum capital expenditures are required, as no special vibration-resistant foundation is needed, minimum specific metal intensity. Number of discs 5 pcs, the size of the receiving window 1790x1750 mm, the largest size of a piece at the inlet 800 mm and at the outlet 220 mm, the largest capacity 450 m3/h, power of electric motors 2x135 kW, structural weight without spare parts 48,570 t, overall dimensions 6900x3600x2010 mm.
