Short Circuit Indicator IKZ-V Model IKZ-V52L-U3 for Localizing Faults in Power Lines

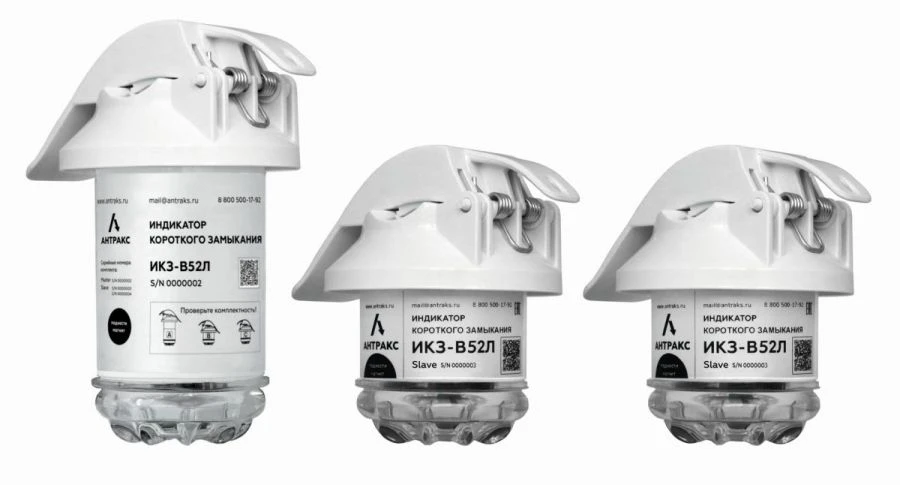

Indicators of short-circuit are designed for localisation of the damaged area on overhead lines of distribution networks with voltage 6-35 kV, network frequency 50 Hz and 60 Hz, with any type of neutral (blind-earthed, resistive, compensated isolated) with one-sided power supply, ring lines with two-sided power supply. The set consists of three indicators: IKZ-V52L-Master (1 pc.) and IKZ-V52L-S (Slave 2 pcs.), controls and performs continuous monitoring of current and voltage in each phase wire of overhead power lines, provides joint data processing, and data transfer to the data acquisition server. IKZ-V52L-U3 registers short-circuits from 20 A, short-circuit faults from 4 A.

IKZ-V52L do not require a separate unit for data transmission via GSM-network, SMS notification of accidents with indication of GPS coordinates can be organised. All indicators of the set are equipped with radio channels of BLE standard, IKZ-V52L-Master is equipped with GSM-channel of data transmission. IP 68.
