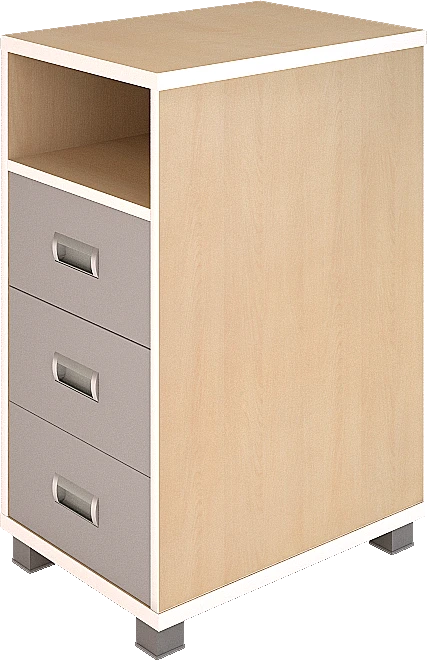

Side Cabinet FrTb1 - 404x480mm for Versatile Storage Solutions

Top 404x480, LDPE 22mm.Mounted on the sides using eccentric ties and screws.Base 404x472, LDPE 22mm.The base has through holes to adjust the height of the supports.Sides 656x468, 2pcs, LDPE 16mm. There are marks for fixing the rails. Rear wall 656x368, 16mm LDF, shelf 368x452, 16mm LDF.Front 156x363, 3 pcs.

LDFP 16mm. Metal handle of mortise type with plastic plugs.There are holes for fixing the body of the drawer and a groove with holes for fixing the handle from the front side.In the lower part of the facade there is a groove for fixing the base of the drawer. Drawer body Consists of parts 400x115 2pcs and 309x115 1pcs.

LDFP 16mm. At the bottom of the parts there is a groove for fixing the base of the drawer.The parts of the body of the drawer are connected with each other with the help of Euro screws 6x50.The base of the drawer 323x398,3pcs, one-sided ???, thickness 3 mm, the front side of white colour. Installed in the groove of the drawers.

Supports plastic Height 52mm.Guides 400mm,ball, h35mm, full extension.
