Signal-20M Fire and Security Control Panel ACDR.425513.017

Available for Import

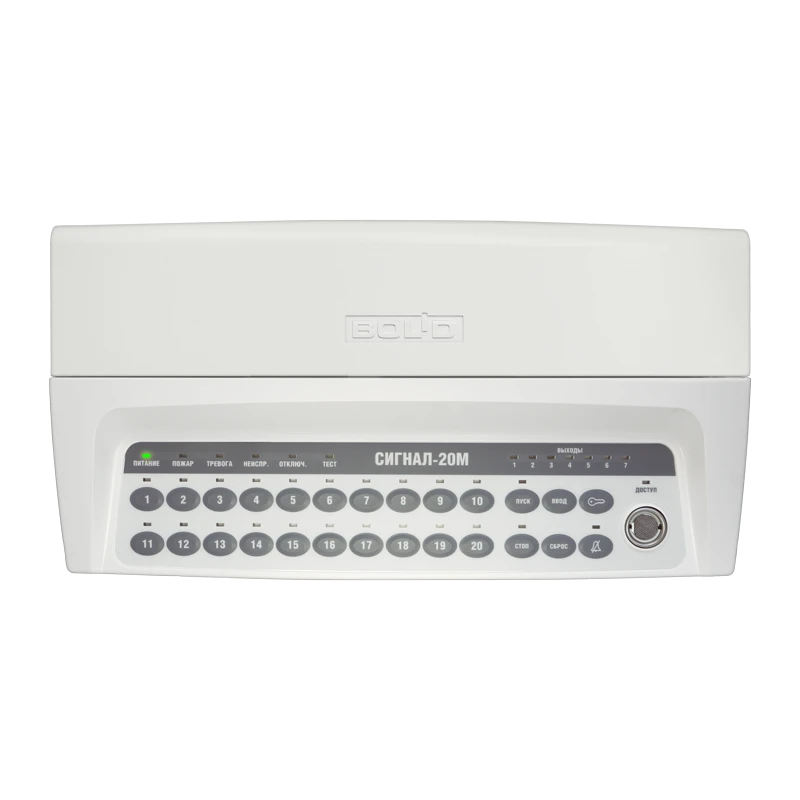

Signal-20M Fire and Security Control Panel for Alarm Systems

Security and Fire Control Panels

Manufacturer: BOLID CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to work as a combined reception and control device and the device control means of warning as part of complexes of technical means: fire alarm and automation, warning systems and evacuation control 1 and 2 types, security and alarm signalling, technological signalling. The device can work independently, as well as can be used as an addressable device when working together with a network controller. The network controller can be S2000M console, Sirius device or PC with the Orion Pro ARM software installed can be used as a network controller. When operating under the control of the S2000M control panel or Sirius device, the Signal-10 provides connection of various fire-fighting equipment. provides connection of various fire-fighting equipment.

Specifications

Number of power inputs

2 pcs

Consumption current (excluding siren consumption current) in standby mode

Not more than 400 mA

Current consumption (excluding siren current consumption) in "Fire" mode

not more than 650 mA

Loop termination resistor resistance

4,7±5 % kOhm

Number of outputs, unsupervised dry contact (130VAC / 170VDC, 0.1A)

3 pcs

Number of outputs, supervised (10.2 ... 28.0 V, 2.5 A)

4 pcs

Rated load current of the monitored output

5 to 2500 mA

Protection degree of the shell according to GOST 14254-2015

IP40

Operating temperature range

minus 30 to +55 °C

Overall dimensions of the device

332x177x42

Instrument weight

0.5 kg

Average lifetime of the device

10 year

Number of inputs for connecting alarm loops

DC supply voltage

10.2...28 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
