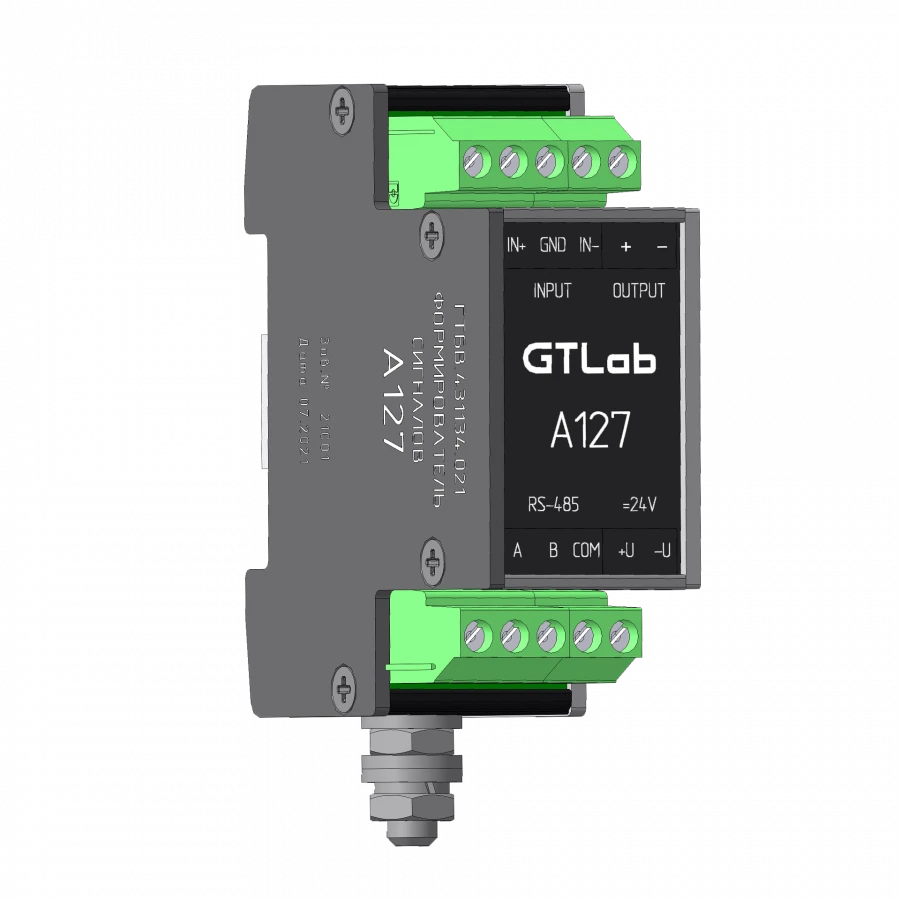

Signal Converter for Piezoelectric Sensors A127 - Efficient and Reliable Solution
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Signal conditioner is designed for conversion of high impedance signal of piezoelectric converter
(vibration transducer, force sensor, etc.) into a low impedance voltage signal.
Conversion of charge into a vibration acceleration output signal; symmetrical (balanced)
input and output; control of test oscillator switching on and conversion ratio switching via RS-485; galvanically isolated from, common, power supply
and RS485; performance stability and reliability in operation; low
noise level.
(vibration transducer, force sensor, etc.) into a low impedance voltage signal.
Conversion of charge into a vibration acceleration output signal; symmetrical (balanced)
input and output; control of test oscillator switching on and conversion ratio switching via RS-485; galvanically isolated from, common, power supply
and RS485; performance stability and reliability in operation; low
noise level.
Specifications
Charge conversion factor (± 2 %)
1; 2; 5; 10; 20; 50; 50; 100; 200; 500 mV/pKl
Operating frequency range (-3 dB ACR non-uniformity)
2 ... 20 000 Hz
Maximum input charge (peak)
± 10,000 pCal
Maximum output voltage amplitude
± 10 ?
Level of RMS of intrinsic noise
< 20-10-6 pKl/pF
Output Impedance
< 100 ohms
Amplitude of test signal (± 2.5 %)
100 mV
Test generator signal frequency
16 ± 0.5 Hz
Data exchange in the information system
RS485
Measurement error in the operating temperature range
± 2 %
Operating temperature range
-40 ... +85 °?
Power supply voltage
+(18 ... 30) ?
Consumption current
? 50 mA
Input/output connector
terminal block
Housing material
Aluminum alloy
Weight
150 ?
DIN rail mounting
Armoured glass
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
