Single-Mode Polarization Maintaining Fiber Optic Cable Available for Import

Single-Mode Polarization Maintaining Fiber Optic Cable for Optical Applications

Special Fibre Optic Cables
Manufacturer: CNII Electropribor OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

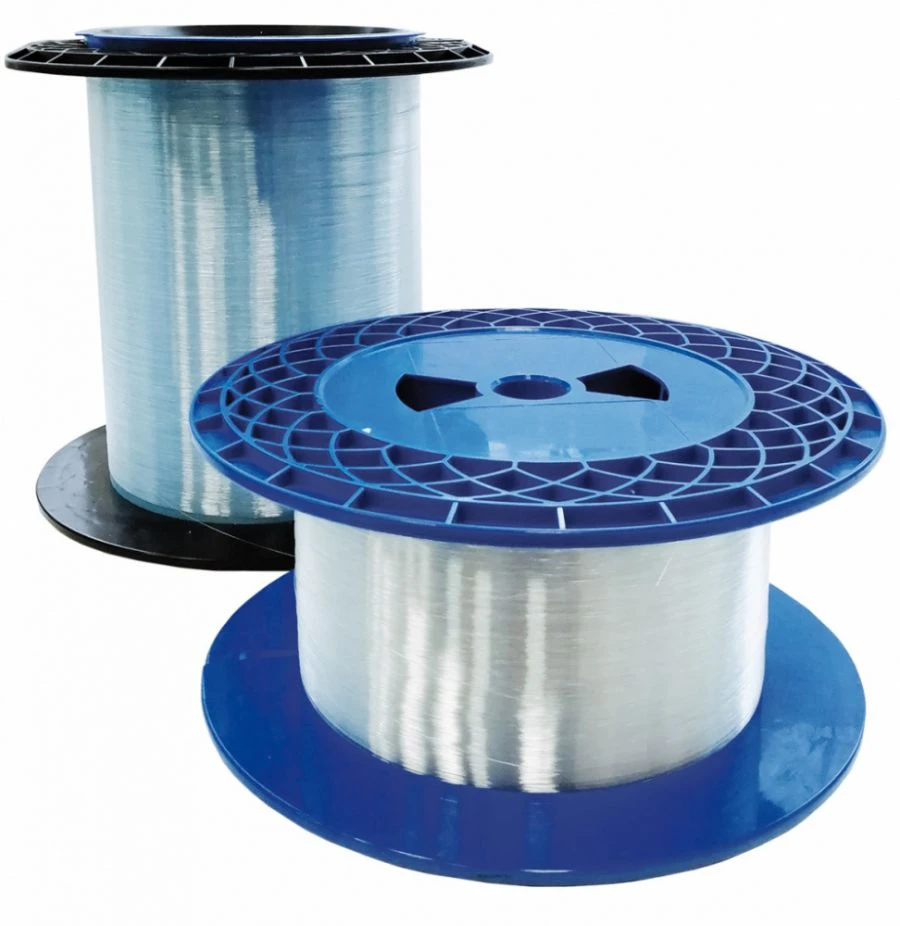

Designed for use in fibre optic sensors, compensation interferometers and fibre optic lines requiring the preservation of polarisation of optical radiation. The operating wavelength is 1550 nm. Low h-parameter (h-parameter not more than 2?10-5 m-1) Coating type: double-layer acrylate Operating temperature range: -60ºC to + 85ºC Fibre is supplied in spools from 0.5 km.

All fibres are rewound at tension? 7 N (0.69 GPa).*Pruf tests at higher tension are possible.

Specifications

Operating wavelength
1.55
Optical losses (radiation attenuation coefficient), not more than
2
Cutoff wavelength, not more
1.15...1.45
Calculated numerical aperture
0.12...0.14
Diameter in protective polymer coating
240...260
Quartz shell diameter
123...127
Bending radius (permissible), not less than
20 mm
Operating temperature range
-50...55 °C
Temperature limit range (during storage)
-65...75 °C
Average time to failure, based on 1 km of fiber, not less than
4000000
Shelf life of the light guide as a part of the product, not less than
25 year
Construction length
1000...4000 m
Length of polarisation runouts, not more than
4 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
