Small T-shaped Implant Plate 3.5 mm, Article 455.004

Available for Import

Small T-shaped Implant Plate 3.5 mm for Distal Radius Fractures

Fracture Treatment Devices

Manufacturer: OSTEOMED-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

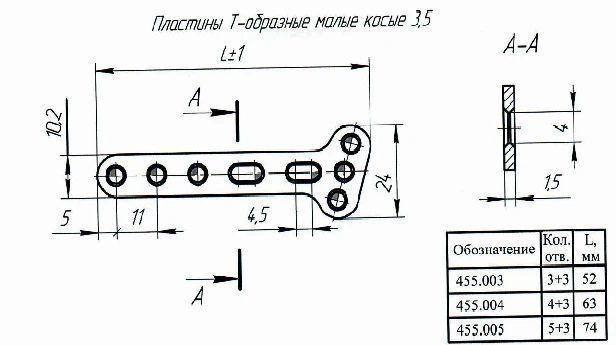

T-plate small oblique 3,5, article no. 455.005 T-plate small oblique 3,5, article no. 455.003.

Description

Non-sterile implantable plate made of solid material designed for steosynthesis of fractures of the distal metaepiphysis of the radius (rear access). Universal design for right and left side. Diaphyseal part: combined 8-shaped holes for screw insertion, possibility to insert screws with angular stability, possibility to insert cortical screws without angular stability, possibility to deviate cortical screws from the nominal axis of screw insertion.

Metaphyseal part: rounding in the middle towards the distal part, possibility of inserting screws with angular stability. The perimeter edges of the plate are rounded to avoid damage to the surrounding soft tissue. Laser marking of the product article.

Sterilisation required before use.

Specifications

Material

Titanium alloy

Width

10.2 mm

Length

63 mm

Thickness

1.5 mm

Number of holes in the diaphyseal part

4 pcs

Metaphyseal width

30 mm

Number of screw holes in the metaphyseal part

3 pcs

Diameter of angular stability screws and cortical screws

3.5 mm

Bending angle at the border of metaphyseal and diaphyseal parts

B1/B8 2100/900 MHz

Form

T-shaped

MRI compatibility

Armoured glass

Sterility

Individual packaging

As required by GOST R ISO 14630-201

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
