Small T-Shaped Plates 3.5, Article 454.003

Available for Import

Small T-Shaped Plates 3.5 for Distal Radius Fracture Fixation

Fracture Treatment Devices

Manufacturer: OSTEOMED-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

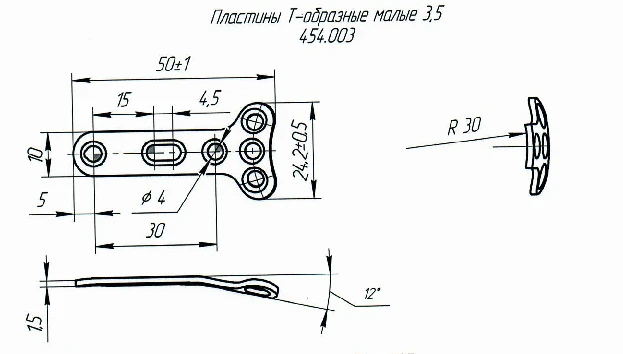

Non-sterile implantable plate made of solid material intended for steosynthesis of fractures of the distal metaepiphysis of the radius (rear access). The shape is T-shaped. Universal design for the right and left side.

Diaphyseal part: combined 8-shaped holes for insertion of screws with angular stability and cortical screws without angular stability, possibility of deviation of cortical screws from the nominal axis of screw insertion. Metaphyseal part: rounding in the middle towards the distal part, possibility of insertion of screws with angular stability. The perimeter edges of the plate are rounded.

Laser marking of the product article. Sterilisation required before use.

Specifications

Material

Titanium alloy

Length

SBVVBG mm

Bending angle at the border of metaphyseal and diaphyseal parts

B1/B8 2100/900 MHz

Number of holes in the diaphyseal part

3 pcs

Metaphyseal width

24 mm

Number of screw holes in the metaphyseal part

3 pcs

Diameter of angular stability screws and cortical screws

3.5 mm

Diaphyseal width

10.2 mm

MRI compatibility

Armoured glass

Sterility

Individual packaging

As required by GOST R ISO 14630-201

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
