Soil Cultivator KBM-8 for Effective Pre-sowing Soil Treatment

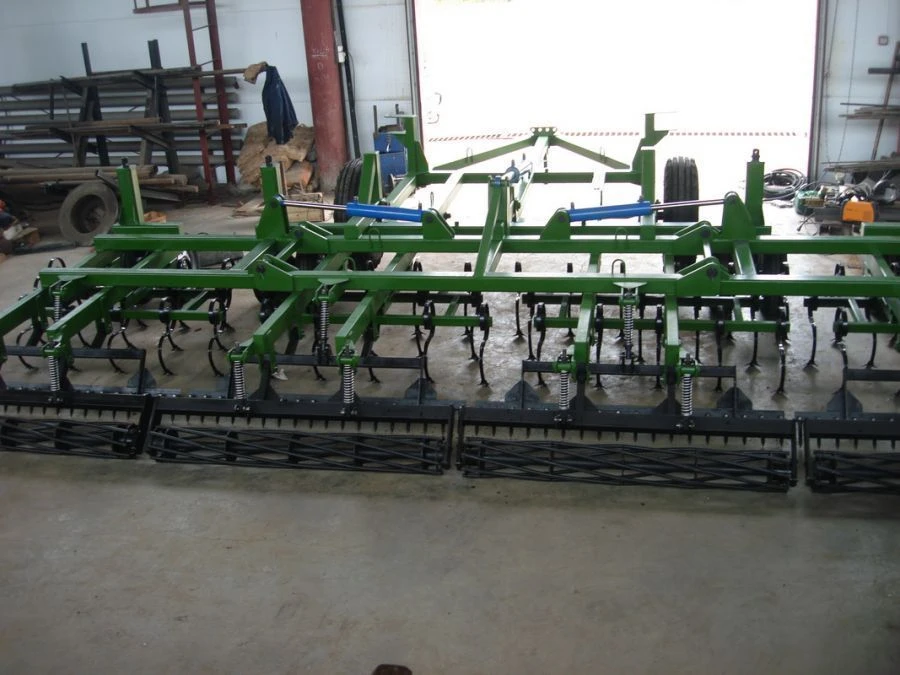

Cultivator KBM 8.2 is designed for continuous seedbed tillage and fallow tillage with simultaneous harrowing. It is equipped with a device for attaching tooth or spring harrows. It provides qualitative soil loosening to a specified depth (5-12 cm) with weed destruction.

The frame is assembled with the help of hydraulics, which allows: to reduce the transport width to 4 m; to save the period of preparation for work; to eliminate the need for additional transport for bringing two cultivators and coupling. The radial suspension of the working parts ensures a repeat of the soil relief. The tines are made of 65G steel, the cutting edges are welded with Sormite.

The enlarged frame from a bar (instead of 80x80mm became 100x100mm), as well as the use of struts do not allow the possibility of bending. Steel holders of the tine legs carry significant loads. The reinforced tine support protects the trailed cultivator from possible breakage.

Trailed cultivator KPS-8 has a set of hydraulic system (hoses you ...
