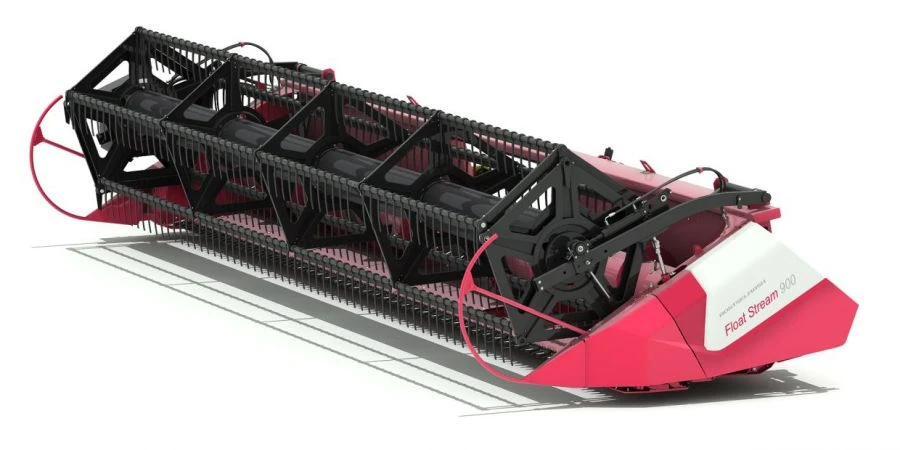

Soybean Harvesting Header RSM FS-900-35 "Float Stream" for Efficient Crop Collection

Crop Harvesting Machines

Manufacturer: ROSTSELMASH OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The cutterbar is designed for harvesting soya, grain ear, leguminous and cereal crops on flat fields with a slope of not more than 8°. The cutterbar is designed for aggregation with PCM-161 combines having automatic system of field relief copying and a single hydraulic connector. The cutterbar may only be used on the recommended crop. The combine must be converted for harvesting the appropriate type of crop. Working width 9 metres

Specifications

Height

2400 mm

Width

9968 mm

Length

3200 mm

Weight

3200 kg

Working width

9 m

Cutting device

Segment-finger with steel stamp-welded twin fingers. Flexible pivotally suspended on arms relative to the frame, Pro_Drive 85V gearbox, 1260

reel

Five-bladed, eccentric with plastic fingers

Auger

Belt spiral with eccentric finger mechanism

Operating speed of the machine, not more (with rigid knife - with floating knife)

9...7

Work organ control

electrohydraulic (from combine operator's workplace)

Splitters

bars

Set cutting height in "with rigid blade" mode

100 mm

Number of service personnel

Grain losses behind the cutterbar, not more (soya-grain)

2.5...1 %

Minimum setting height of cut in "floating knife" mode

30 mm

Reliability coefficient of technological process performance, not less than

0.98

Operational labor intensity of daily maintenance, not more than

0.05

Readiness factor

0.98...0.97

MTBF for failure of complexity group II of a single product, not less than

Average service life, years

10 year

Power consumption

40 kW

Type of product according to PP RF 616

Machines for harvesting cereals, oilseeds, pulses and cereal crops other

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
