Special Dump Truck for Bulk Cargo - Model 458909 for Agricultural Use

Special purpose motor vehicles other, not included in other groupings

1)top with top linkage, bottom with bottom 500mm 2)top rigidly fixed, bottom 850mm on top linkage 3)side one-piece on top linkage. 4) lateral up to 1000 mm one-piece on the lower linkage. The sides can be made with or without middle posts.

1)fixed, rigidly fixed2)upper - with upper, lower - with lower linkage, 500mm 3)one-piece board on the upper linkage;4) swing gate;5) one-piece board opens to the side;6) upper 300mm on the lower linkage, middle fixed, lower 850mm on the upper linkage.

steel 09g2s.

Installation of a removable overboard +250mm.Installation of the Dispenser (on the rear board for portion unloading). Completion of a body by seals under loose cargo (grain, seeds, except for rape, flax). Installation of frame awning with winding device

Dump

mechanical

Diesel

kamaz 43118-a5,(-50), rs, rr

1) Side locks are mechanical and can be opened manually, lower side walls are equipped with a spring mechanism to facilitate lifting of the sides. 2) Side locks are hydraulic, operated by the driver from the vehicle cab

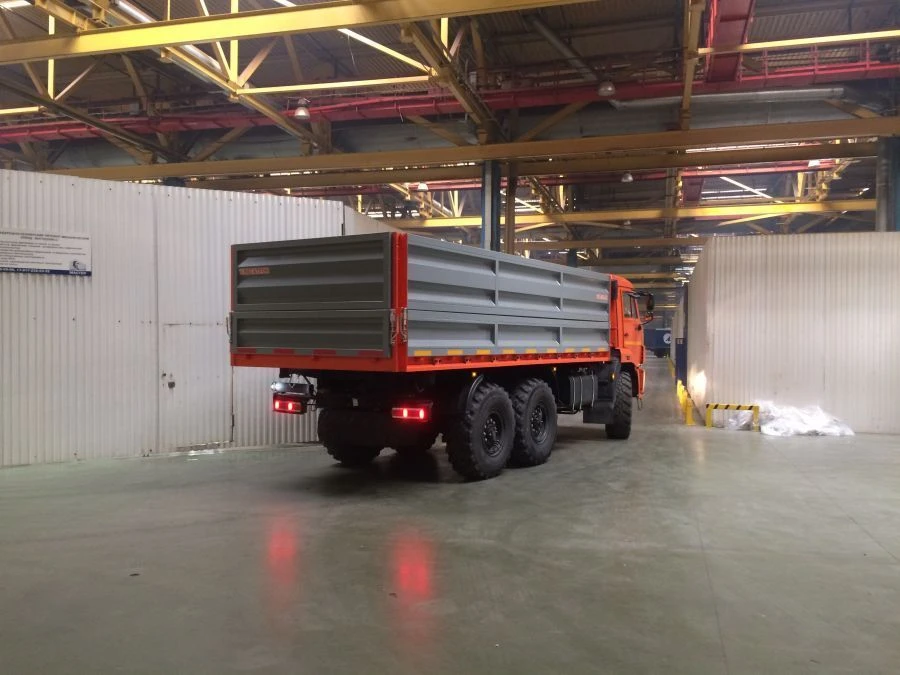

Dump truck with three-sided (two-sided) unloading, designed for transportation of bulk cargoes of national economy and agricultural products.

?????????????

458909

9100...10400?2550?3080...4000 ?? mm

dump truck

4600+1320
