Spectron-202-Exi Flame Detector for Indoor Use Available for Import

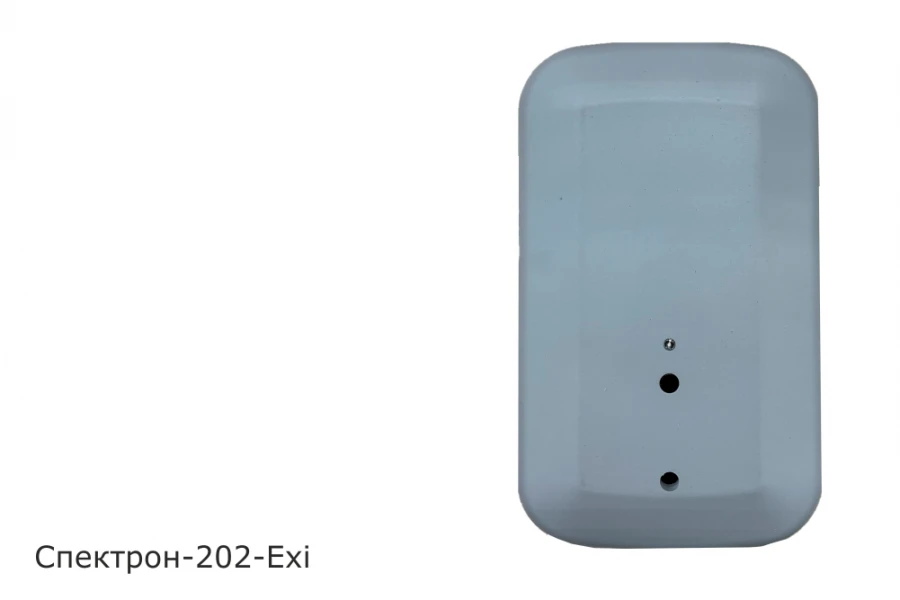

Spectron-202-Exi Flame Detector for Reliable Indoor Safety

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Double-band 2IC detector fire flame Spectron series 202-Exi. Category of noise immunity - 2. For enclosed spaces.

Viewing angle 90 °. Flame detection range - 25 m on TP5 and TP6. 4 modes of operation with different sensitivity and detection range.

Self-test function, fault signal transmission. IP66/IP68. Explosion protection marking.

Ex ia I Ma X/0Ex ia IIC T6 Ga X/Ex ia IIIC T85ºC Da X. Housing - ABS-plastic. Overall dimensions (HxWxG) 158x84x73 mm.

Temperature range from - 55 to + 75°C.

Specifications

Weight
200 year
Overall dimensions
158x84x73 mm
Viewing angle
Flat grinder, Specialised grinder
Recovery time
2
Degree of protection of the shell, IP
68
Operating temperature range
75 °C
Operating temperature
(55);+75 °C
Designation
FIRE FLAME DETECTOR IP330-1-1
Assignment
Recommended for fire alarm systems and fire extinguishing systems
Explosion protection marking
RO Ex ia I Ma X / 0Ex ia IIC T6 Ga X / Ex ia IIIC T85ºC Da X
Housing material
ABS plastic
Power supply voltage
9...26 V
Sensitivity levels
Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
