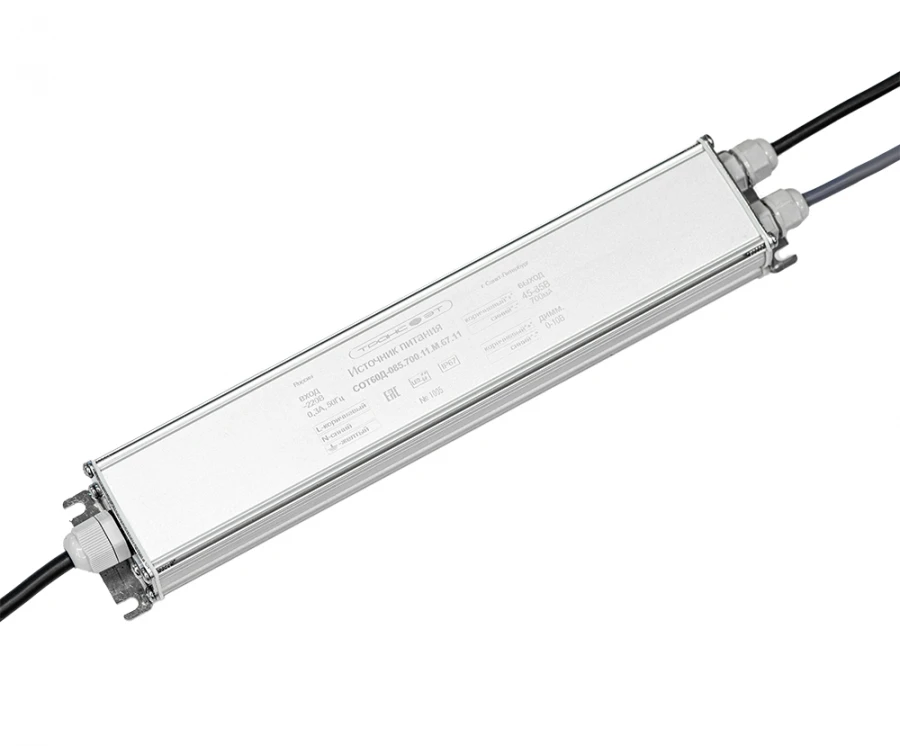

Stabilized Current Power Supply for LED Matrix SCOT60D-085.700.11.M.67 - Reliable LED Power Solution

Power Supply Parts

Manufacturer:TRANSET LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for supplying stabilised current to LED matrixes

Specifications

Operating range of output voltage

45...85 V

Maximum load power

59.5 W

Galvanic isolation input - output

Got it

Electrical insulation strength (input-output), effective value

Weff 1500.

Provides light ripple factor, not more than

1 %

Protection when AC input voltage 380 Veff is applied

Got it

Protection against output voltage overshoot

Got it

Dimming support

Got it

Dimming protocol

0...10 V

Weight, max.

0.328 kg

Dimensions of the source (DxWxH) mm

270 x 46,4 x 32

Degree of protection of the shell

IP 67

EMC 9 kHz - 30 MHz

Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

Power factor, not less than

0.96

Warranty

5 years

Country of manufacture

Russia

AC input voltage operating range

Weff 176-264.

AC input voltage limit range

90...270 V

Maximum allowable AC input voltage

Weff 400.

Input voltage frequency

50±4%

Current consumption

0.3 A

efficiency, at least

Flat grinder, Specialised grinder %

Output current

700±5%

Temperature deviation of output current value in the operating temperature range, not more than

2 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
