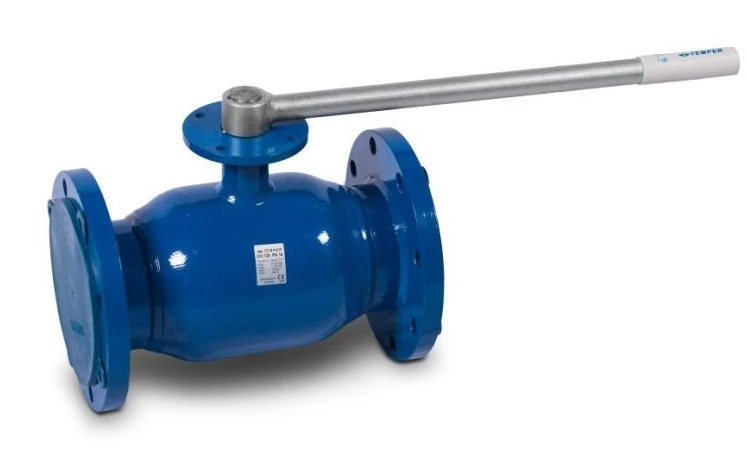

Standard Ball Valve with Flange for Actuator Installation - Model 28320300

Ball Valves

Manufacturer:TEMPER LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Standard bore 284 ball valve with flange for PN25 actuator installation, 28420250.Standard bore 283 ball valve with actuator flange, 28320500 Standard bore 283 ball valve with actuator flange, 28320400 Standard bore 283 ball valve with actuator mounting flange, 28320150 Standard bore 284 ball valve with flange for PN25 actuator installation, 28420400.

Standard bore 284 ball valve with flange for PN25 actuator installation, 28420200.Standard bore 283 ball valve with actuator flange, 28320250 Standard bore 284 ball valve with flange for PN25 actuator installation, 28420300.Standard bore 284 ball valve with flange for PN25 actuator installation, 28420500.Standard bore 284 ball valve with flange for PN25 actuator installation, 28420125.Standard bore ball valve 283, with flange for actuator installation, 28320125 283 standard bore ball valve with actuator flange, 28320200 Standard bore 284 ball valve with flange for PN25 actuator installation, 28420150.

Description

Connection type:

flanged

Working Environment:

District heating networks, oil products, fuels and lubricants,
other liquids free from abrasive contaminants.
Natural gas, liquefied petroleum gas, gaseous media not aggressive towards
valve materials.

Specifications

Airtightness class

Class "A" GOST R54808-2011

Diameter

300 mm

Nominal pressure

16 MPa

Construction length

750 mm

Connection type

Flanged

Aisle

Standard

Flange for mounting the actuator

with flange for mounting the actuator

Execution

ordinary

Enclosure materials

Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to

-40 °C

Maximum temperature, up to

200 °C

Service life, at least

25 year

Warranty period

3 year

Warranty period, cycles

10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
