Available for Import

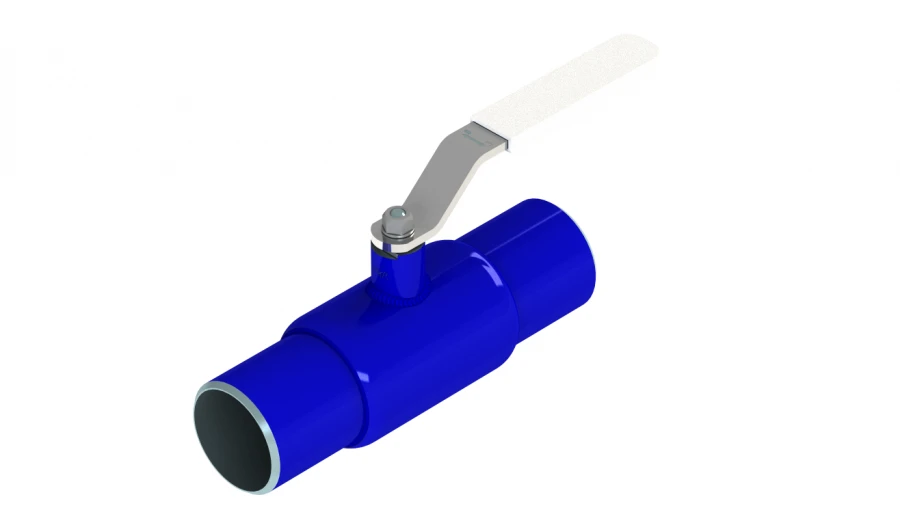

Full-Welded Standard Ball Valve for Welding DN65, 25 atm
Manufacturer:
LMZ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The all-welded standard bore ball valve is used as a shut-off valve providing complete shut-off of the working medium flow in pipelines transporting water, gas, steam, oil products, as well as other non-aggressive and non-toxic liquids to which the materials of the valve parts are resistant.
Specifications
Operating medium
Water, gas, steam
Name
Ball valve all-welded standard bore ball valve under welding Du65, 25 atm.
Climatic version
U1 according to GOST 15150-69 (ambient t° from -45° to +40° C)
Material
20 GOST1050-2013
Joining
Welded
Pressure
5 MPa
Nominal diameter
65
Assignment
It is used as a shut-off valve providing complete shut-off of the working medium flow in pipelines transporting water, gas, steam, oil products, as well as other non-aggressive and non-toxic liquids to which the materials of the valve parts are resistant.
nominal passage
DN65
Shutter type
Spherical plug
Housing material
20 GOST1050-2013
Drive pinion torque
Handle force max. 400N
Type of control
Manual drive
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
