Available for Import

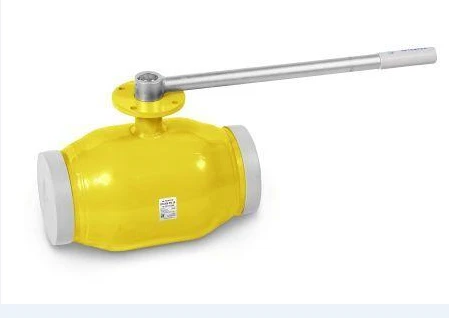

Standard Passage Ball Valve 382 with Flanged Drive Connection for Gas Applications
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Standard bore ball valve 382, with flange for welded actuator mounting, 38220250
Standard bore ball valve 382, with flange for welded actuator mounting, 38220500
Standard bore ball valve 382, with flange for welded actuator mounting, 38220400
Standard bore ball valve 382, with flange for actuator mounting, welded, 38220125
Standard bore ball valve 382, with flange for welded actuator mounting, 38220300
Description
Connection type:
welded/welded
Working Environment:
Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.
welded/welded
Working Environment:
Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.
Specifications
Airtightness class
Class "A" GOST 9544-2015
Diameter
200 mm
Nominal pressure
25 MPa
Construction length
430 mm
Weight
31.75
Connection type
Welded
Aisle
Standard
Flange for mounting the actuator
with flange
Execution
ordinary
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
40 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
