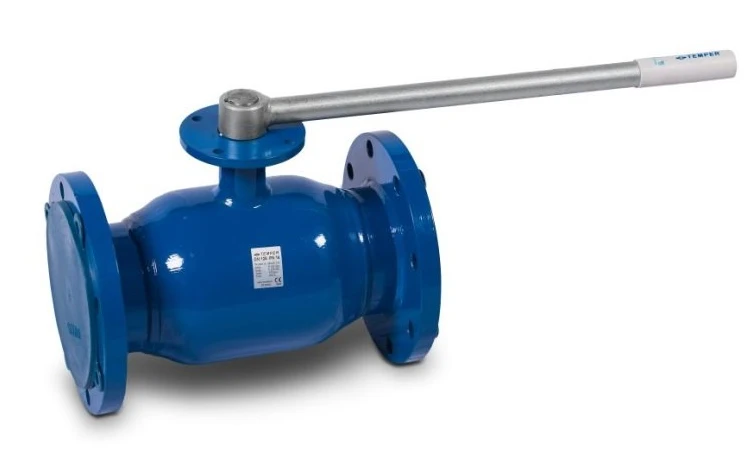

Available for ImportStandard Passage Ball Valve with Flange for Actuator - Model 28420300
Manufacturer:TEMPER LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Connection type:
flanged
Work Environment:
Heat network water, oil products, petroleum products, fuels and lubricants, gaseous and other working media, not aggressive for materials of valve parts.
flanged
Work Environment:
Heat network water, oil products, petroleum products, fuels and lubricants, gaseous and other working media, not aggressive for materials of valve parts.
Specifications
Airtightness class
Class "A" GOST R54808-2011
Diameter
300 mm
Nominal pressure
25 MPa
Construction length
750 mm
Weight
163
Connection type
Flanged
Aisle
Standard
Flange for mounting the actuator
with flange
Execution
ordinary
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
