Steel Ball Valve ATEX.491284.062 for Pipeline Isolation

Available for Import

Steel Ball Valve ATEX.491284.062 for Effective Pipeline Isolation

Ball Valves

Manufacturer: ATEK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

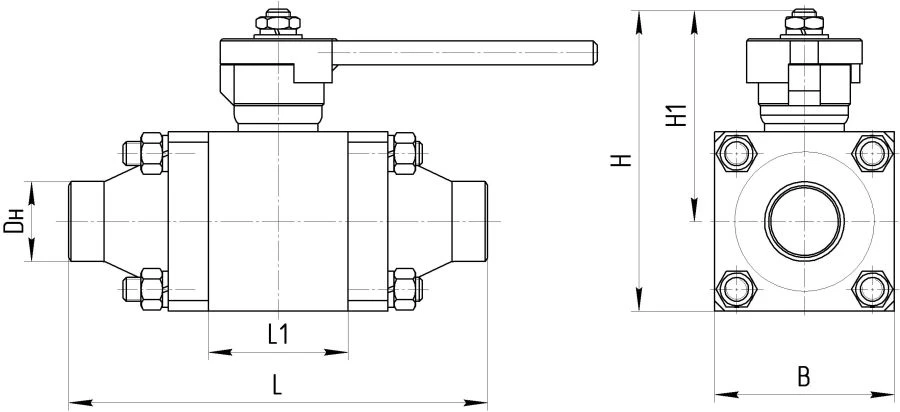

The steel ball valve is designed for hermetic separation of two sections of the pipeline with a manual actuator. The valve is controlled by a manual drive. The tightness of the valve is class A of GOST 9544.

The valve is hermetically sealed in relation to the external environment. Connection to pipelines is welded. Welding is carried out by means of adapters on mating flanges.

The presence of mating flanges with adapters, which are elements of the design, provides a quick removal of the valve without cutting out of pipelines.

Specifications

Type of product according to PP RF 616

Shut-off valves for process control (gate valves, cocks, stop valves, disk gates and other fittings)

Direction of the environment

Bilateral

Operating medium

Fuel oil, diesel fuel, steam, water

Temperature, up to

400 °C

Nominal pressure, up to

6.3 MPa

Nominal diameter

32 mm

Full bore
