Available for Import

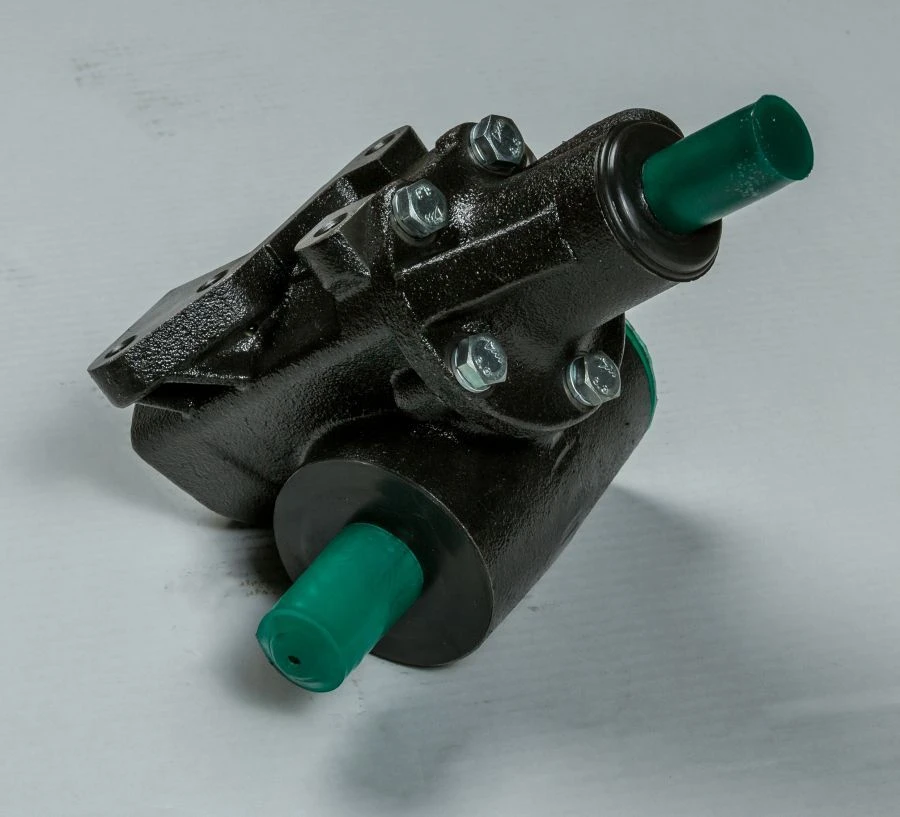

Steering Control Mechanism for Vehicles (MRC) - Enhance Vehicle Handling

Steering System Parts

Manufacturer: INMASH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

- MPU type - screw, ball nut, rack, sector;
- steering bipod shaft diameter - from 27 to 50 mm;
- centre distance in the crankcase - from 50 to 98 mm;
- screw diameter - from 20 to 80 mm (20, 25, 32, 40, 45, 50, 63, 70, 80);
- screw and nut thread pitch - from 4 to 20 mm (4, 5, 6, 8, 10, 12, 15, 16, 20);
- thread profile - arched (gothic arch);
- nut type - single nut with toothed rail;
- method of creating preload
- by selective selection of ball diameters for the thread profile "gothic arch";
- ball diameter - Ø7,144; Ø7,938;
- ball return mechanism - external return tube or pad;
- type of steering booster-hydraulic, electric;
- location of the steering booster - built into the steering mechanism, separate from the steering mechanism;
- ambient temperature during operation from - 45°C to + 50°C (depending on the type of oil).

Specifications

Operating temperature range

0...50 °C

Outer diameter

120...350 mm

Height

100...400 mm

Dividing circle

45...110 mm

Number of splines

32...60 pcs

Name

car steering mechanisms

Designation

31601; 80501; 6909; 3303; gur 05

Model

Steering mechanisms of the type: "screw; ball nut; rack; sector".

Performance

500...3000

Applicability

Parts and accessories of motor vehicles

Thread pitch of screw and nut

4...20 mm

Screw diameter

20...80 mm

Location of power steering

Built in steering gear; separate from steering gear

Type of power steering

Hydraulic; electric

Ball return mechanism

External return tube or padding

Nut type

single nut with toothed rail

Thread profile

arched (gothic arch)

Diameter of steering bipod shaft

27...50 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
