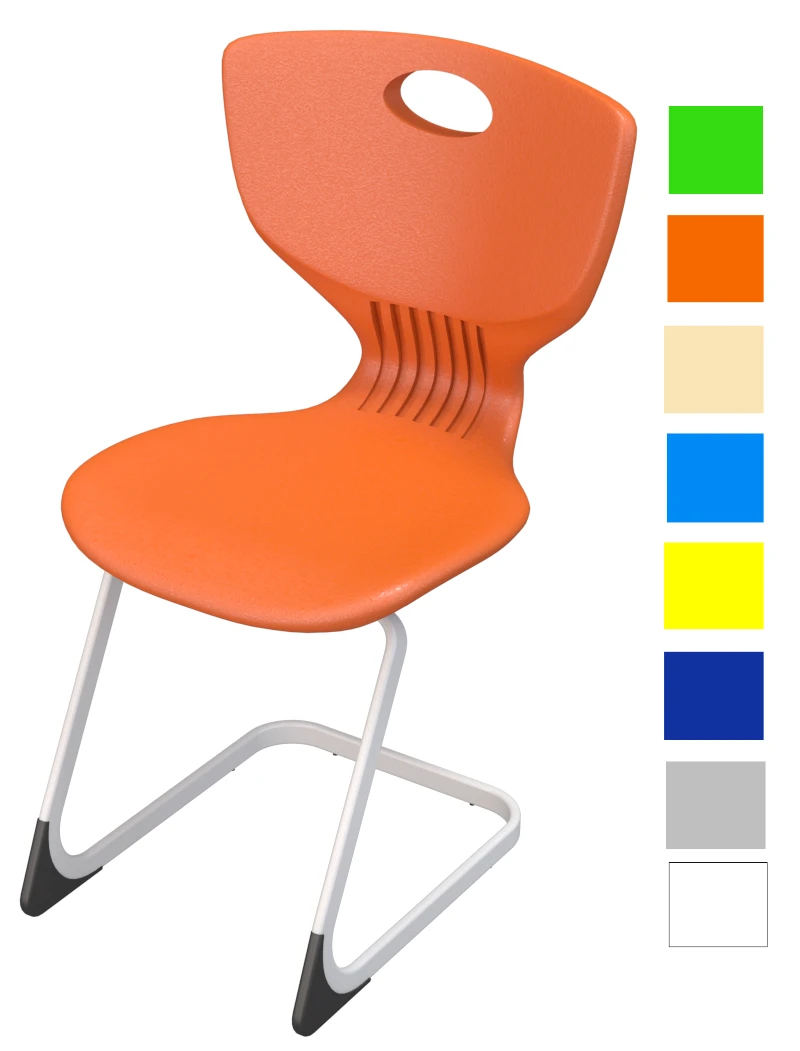

Student Chair AGAT 01.02.01.04 for Classroom and Educational Settings

Dimensions of the frame 440h470h470.The frame is made of a solid bent flat-oval tube with a cross-section of 40h20h1,5 mm. At the top of the frame is a welded structure of 2 plates with a thickness of 3 mm and 2 pipes with a diameter of 18 mm with a thickness of 1.5 mm to fix the seat. The top support of the all-bent frame has an internal radius of 65mm and a bending angle of 90° .The side supports have an internal radius of 70mm and a bending angle of 70° at the rib.

The rear support of the all-curved structure has a radius of 65mm and a bending angle of 90° on the plane. A support angle plate is welded onto the side supports on the outside of the bend of the chair frame to further secure the plastic footrest. All visible holes in the tube are covered with plastic plugs.

The lower part of the frame is fitted with 15x6 plastic footrests to prevent damage to the floor covering. The frame is powder coated. Seat dimensions: 425x450x425mm.

The seat and backrest are a continuous moulded construction made of heavy-duty polypropylene with 6 stiffening ribs.
