Support Frame 650x1200x600 for Honeycomb Tables/Platforms, Code 64OTS0651206 Available for Import

Support Frame 650x1200x600 for Honeycomb Tables and Optical Systems

Special Purpose Equipment
Manufacturer: LASSARD LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Optical honeycomb board, 1200 x 2000 x 200, part number 63OT122020

Description

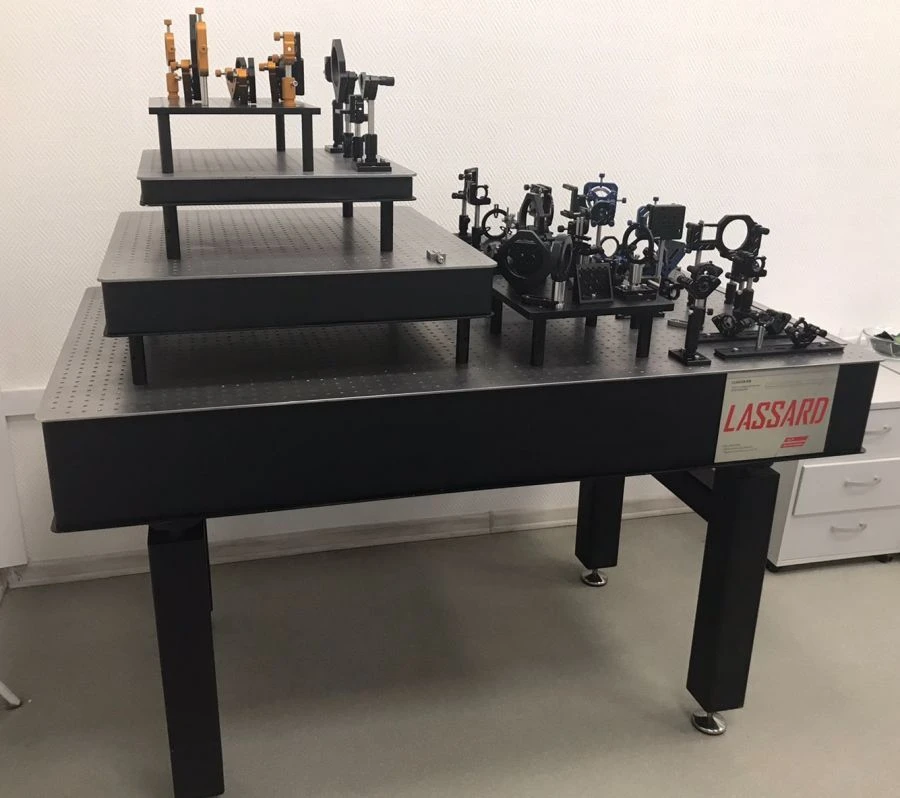

Support is designed for installation of honeycomb tops or honeycomb plates on it. Besides it allows to install other elements of optical schemes under the Customer's tasks. The pillars of the support are made of 100 mm square steel tubes, the links connecting the pillars are made of 80 mm square steel tubes. The elastic support element (EC class shock absorber type 10050 type D (Compression)) provides the necessary vibration isolation. The rigid support element (vibro-support OV-31M) is used when there is no need for additional damping.

Specifications

Weight, not more
58 kg
Service life, at least
10 year
Dimensions (DxWxH), mm
650x1200x600
Load per element
1050 kg
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
