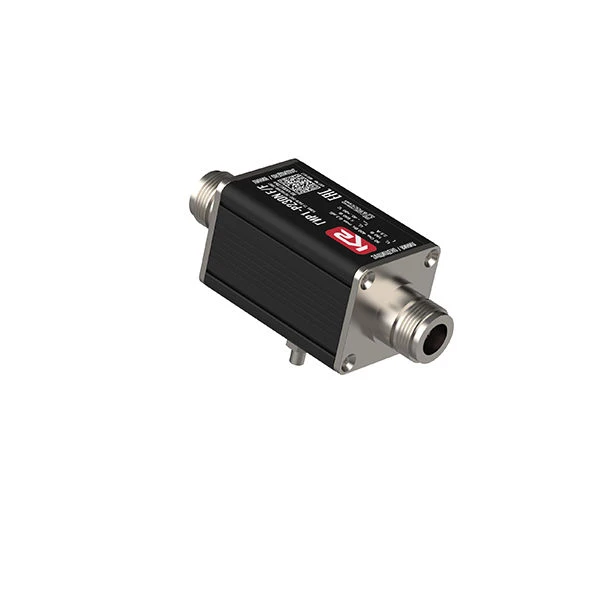

Surge Protection Device for Radio and TV Equipment GIR1-R230N F/F - Reliable Lightning Protection

UZIP GIR1-R230N F/F, TU 3428-002-79740390-2007 is designed to protect antenna inputs of radio and television equipment from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) within 0A(B) - 1 lightning protection zones in accordance with GOST R IEC 62305-1-2010. The surge arrestor is capable of passing the rated discharge current In (8/20)= 20 kA. The operating frequency range of the ultrasound device is 0-2.15 GHz, wave impedance 50 Ohm.

Maximum continuous operating voltage Uc = 130/180 V AC/DC, rated current IL = 2.5 A. It is connected to the protected equipment by means of connectors type N (Female/Female).
