Surge Protection Device GIR 4/100M PoE+ for Network Equipment

USIP GIR 4/100M PoE+, TU 3428-002-79740390-2007 are designed for protection against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) of LAN equipment of categories 3/5/5/5e with Ethernet interfaces of 10BASE-T, 100BASE-TX standards within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1. They are produced for nominal operating voltage UO = 6 V DC, IL = 1.5 A. The devices support power over data technology (48 V - PoE, PoE+), with A and B power supply schemes.

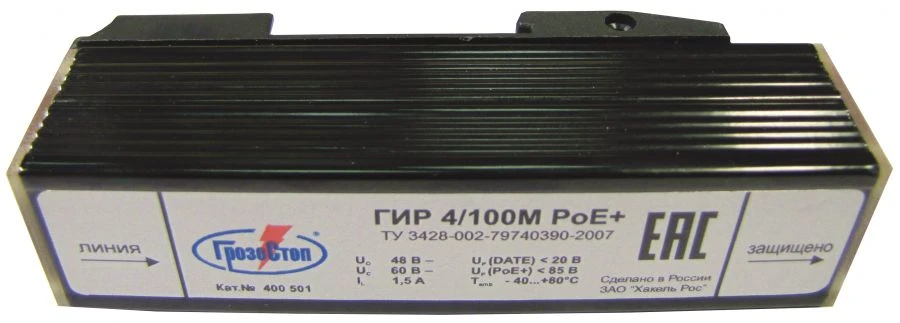

Capable of passing rated discharge current In (8/20)=1 kA, ITotal (10/350)=1 kA. Data transmission speed is 10/100 Mbit/s. Made in a metal case with a lock for installation on a 35 mm DIN-rail.

On the side of the line and the protected equipment installed RJ45 connectors (1 port).
