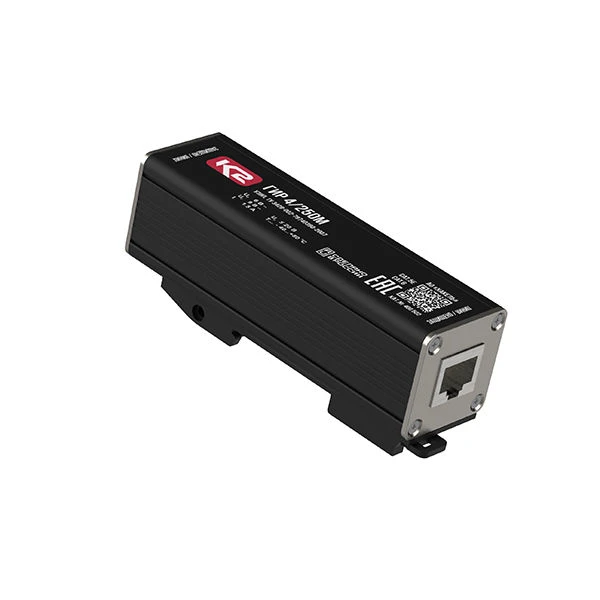

Surge Protection Device GIR 4/250M (LT) for Protection Against Overvoltage

UZIP GIR 4/250M (LT), TU 3428-002-79740390-2007 are designed for protection against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) of LAN equipment of categories 5e/6 with Ethernet interfaces of 1000BASE-T, 10GBASE-T standards within 0B - 2 zones of lightning protection in accordance with GOST R IEC 62305-1.They are produced for rated operating voltage UO = 6 V DC, IL = 1,5 A. Capable of passing rated discharge current In (8/20)=1 kA, ITotal (10/350)=1 kA.Data transfer rate 1/10 Gbit/s. Made in a metal case with a lock for installation on a 35 mm DIN-rail.

On the side of the line and protected equipment installed RJ45 connectors (1 port).
