Surge Protection Device GSD3-230/TNC, Cat. No. 300 005

Available for Import

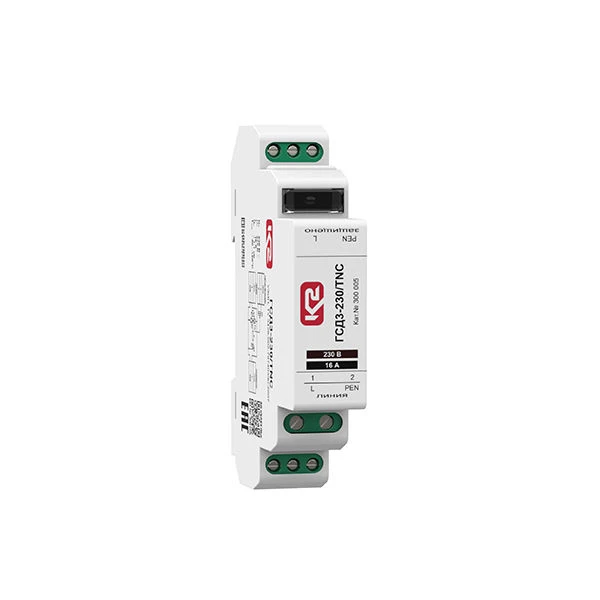

Surge Protection Device GSD3-230/TNC for Effective Voltage Surge Protection

Surge Protection Devices

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Surge voltage protection device GSD3-230/TNC (LT), cat.no.300 105

Description

Single-pole surge arresters of test class III, combined type. U0 = 230 V AC. Uoc (1,2/50) = 15 kV.

They are installed within II - III lightning protection zones (in accordance with GOST R IEC 62305-1 and SO-153-34.21.122). Designed to protect equipment from residual surge surges for circuits with TNC type grounding system. Visual control of the operating state of the surge arresters is carried out with the help of a green-coloured LED in the thermal release circuit.

For remote control the devices are equipped with a dry contact for remote signalling.

Specifications

Surge protection class

III

Rated operating voltage Un

230 V

Housing material

Polyamide PA6

Weight

0.048 year

Dimensions, WxWxH

18x91x65 mm

Number of channels

1 pcs

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
